Replies: 4 comments 4 replies
-
|
The code does not have a function to do that, but it is straight forward to compute the Bose-Einstein occupation function from the temperature and anharmonic phonon frequency. About the sudden change of the vibrational free energy, I guess the SCPH calculation did not converge in the low-temperature region. Did you check if the SCPH loop reached convergence? |
Beta Was this translation helpful? Give feedback.
-
|
Hi Terumasa,

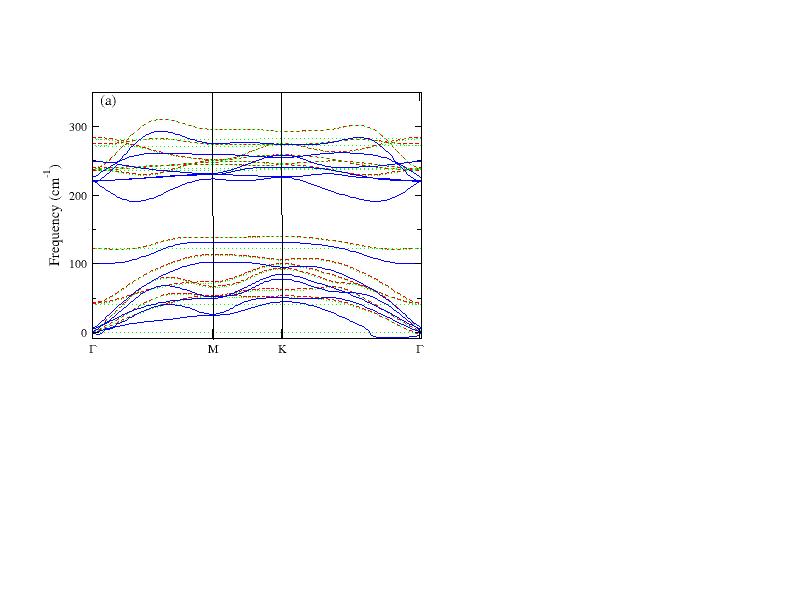

It reached convergence but had negative values. PFA the Phonon dispersion graph.
How to improve this? I have changed alpha, convergence threshold and max_iterations in the input file, but the best I could get was this.
Best,
Eesha
…________________________________
From: Terumasa TADANO ***@***.***>
Sent: Friday, October 14, 2022 9:45 AM
To: ttadano/alamode ***@***.***>
Cc: Eesha Sanjay Andharia ***@***.***>; Author ***@***.***>
Subject: Re: [ttadano/alamode] Extracting Bose-Einstein distribution function for SCPH calculations (Discussion #98)
The code does not have a function to do that, but it is straight forward to compute the Bose-Einstein occupation function from the temperature and anharmonic phonon frequency.
About the sudden change of the vibrational free energy, I guess the SCPH calculation did not converge in the low-temperature region. Did you check if the SCPH loop reached convergence?
—
Reply to this email directly, view it on GitHub<https://nam11.safelinks.protection.outlook.com/?url=https%3A%2F%2Fgithub.com%2Fttadano%2Falamode%2Fdiscussions%2F98%23discussioncomment-3879932&data=05%7C01%7Cesandhar%40uark.edu%7Cc6585feb82e0402a085d08daadf2b916%7C79c742c4e61c4fa5be89a3cb566a80d1%7C0%7C0%7C638013555257578941%7CUnknown%7CTWFpbGZsb3d8eyJWIjoiMC4wLjAwMDAiLCJQIjoiV2luMzIiLCJBTiI6Ik1haWwiLCJXVCI6Mn0%3D%7C3000%7C%7C%7C&sdata=syEX%2F8WfB%2Ftkzt7vG0ekGswa6frn5EYTYJPTiolUZTo%3D&reserved=0>, or unsubscribe<https://nam11.safelinks.protection.outlook.com/?url=https%3A%2F%2Fgithub.com%2Fnotifications%2Funsubscribe-auth%2FAZRPMON3TZIMRX46EMBRAF3WDFWYFANCNFSM6AAAAAARFJS6NE&data=05%7C01%7Cesandhar%40uark.edu%7Cc6585feb82e0402a085d08daadf2b916%7C79c742c4e61c4fa5be89a3cb566a80d1%7C0%7C0%7C638013555257578941%7CUnknown%7CTWFpbGZsb3d8eyJWIjoiMC4wLjAwMDAiLCJQIjoiV2luMzIiLCJBTiI6Ik1haWwiLCJXVCI6Mn0%3D%7C3000%7C%7C%7C&sdata=zGbk1c0UY%2BQVE%2Ffj4oXWloNQgRZVyfQM%2BGpUd66xHvs%3D&reserved=0>.
You are receiving this because you authored the thread.Message ID: ***@***.***>
|
Beta Was this translation helpful? Give feedback.
-
|
Do you mean you obtained unstable phonon modes even when the SCPH calculation converged? If so, what was |
Beta Was this translation helpful? Give feedback.
-
|
Hi Terumasa,
1) Yes, I have obtained unstable phonons in-spite of convergence.
2) I have used the following input paramters:
&scph
SELF_OFFDIAG = 0
MAXITER = 20000
MIXALPHA = 0.01
KMESH_INTERPOLATE = 5 5 1
KMESH_SCPH = 10 10 1
TOL_SCPH = 5.0e-8
/
3. The negative q-point values are shown in the graph. Also, I am unable to include the non-analytical corrections. For this one it does not converge.
Thanks, in advance!
Best,
Eesha
…________________________________
From: Terumasa TADANO ***@***.***>
Sent: Friday, October 14, 2022 9:58 AM
To: ttadano/alamode ***@***.***>
Cc: Eesha Sanjay Andharia ***@***.***>; Author ***@***.***>
Subject: Re: [ttadano/alamode] Extracting Bose-Einstein distribution function for SCPH calculations (Discussion #98)
Do you mean you obtained unstable phonon modes even when the SCPH calculation converged? If so, what was KMESH_INTERPOLATE you used and which q points you found imaginary phonons?
—
Reply to this email directly, view it on GitHub<https://nam11.safelinks.protection.outlook.com/?url=https%3A%2F%2Fgithub.com%2Fttadano%2Falamode%2Fdiscussions%2F98%23discussioncomment-3880061&data=05%7C01%7Cesandhar%40uark.edu%7C735fb111865e47a7a25908daadf48aa9%7C79c742c4e61c4fa5be89a3cb566a80d1%7C0%7C0%7C638013563090127341%7CUnknown%7CTWFpbGZsb3d8eyJWIjoiMC4wLjAwMDAiLCJQIjoiV2luMzIiLCJBTiI6Ik1haWwiLCJXVCI6Mn0%3D%7C3000%7C%7C%7C&sdata=WioRkMhI8Umt6aSeIoqrgRzYD30heJNtl7gDG2fII4k%3D&reserved=0>, or unsubscribe<https://nam11.safelinks.protection.outlook.com/?url=https%3A%2F%2Fgithub.com%2Fnotifications%2Funsubscribe-auth%2FAZRPMOLHIWKJQXR5OB75MR3WDFYI7ANCNFSM6AAAAAARFJS6NE&data=05%7C01%7Cesandhar%40uark.edu%7C735fb111865e47a7a25908daadf48aa9%7C79c742c4e61c4fa5be89a3cb566a80d1%7C0%7C0%7C638013563090127341%7CUnknown%7CTWFpbGZsb3d8eyJWIjoiMC4wLjAwMDAiLCJQIjoiV2luMzIiLCJBTiI6Ik1haWwiLCJXVCI6Mn0%3D%7C3000%7C%7C%7C&sdata=eBikfOVIQNtpSmv%2BEABVQQ1GDayFat8sUsj7mAf12ew%3D&reserved=0>.
You are receiving this because you authored the thread.Message ID: ***@***.***>
|
Beta Was this translation helpful? Give feedback.
-
|
Where can I find the graph of dispersion curves? |
Beta Was this translation helpful? Give feedback.
-
|
|
Beta Was this translation helpful? Give feedback.
-
|
This result indicates that the ZA mode frequency near the Gamma point became negative after interpolation even when the SCPH calculation reached convergence at 5x5x1 q points. I think this can happen for 2D systems, where it is often necessary to use a fairly large supercell along the in-plane direction to remove the imaginary frequency pocket around Gamma point even at the harmonic level. I would suggest trying the following:
The imaginary frequency pocket around Gamma may be avoided by using a smaller The above procedure may not solve the issue. If not, I recommend increasing the temperature and computing free energies only above the temperature where the imaginary mode disappears. |
Beta Was this translation helpful? Give feedback.
-
Beta Was this translation helpful? Give feedback.
Uh oh!
There was an error while loading. Please reload this page.
-
Hi everyone,
I wanted to know if it is possible to extract and plot the Bose-Einstein distribution function as function of temperature for renormalized anharmonic phonon frequencies using the code?
I want to explain a sudden lowering of MSD value at 300K and in Free energy at around 200K ( Please find attached both the graphs).
Best,
Eesha
