Non-deterministic render: sub-compositions double-mount when video metadata loads after capture starts (timeline_rebind_after_media_metadata)

[jurczykpawel]

Summary

When a composition mounts data-composition-src sub-compositions over a full-length <video>, the runtime can re-run the montage after the video's loadedmetadata arrives (diagnostic timeline_rebind_after_media_metadata). If that happens after frame capture has started, every sub-composition is mounted a second time: the data-composition-id collision is uniquified to …-1 (+ data-hf-original-composition-id), the renamed instance's scoped GSAP selectors stop matching, and captured frames composite two phase-offset copies of the block. The same project renders correctly when the metadata wins the race — so the output is non-deterministic across environments.

Evidence — same project, same CLI, different environment

Identical project directory (index.html + sub-compositions + local mp4/wav), rendered with stock npx hyperframes@0.7.60 render, frame at t=14s inside a 3 s flowchart-vertical window:

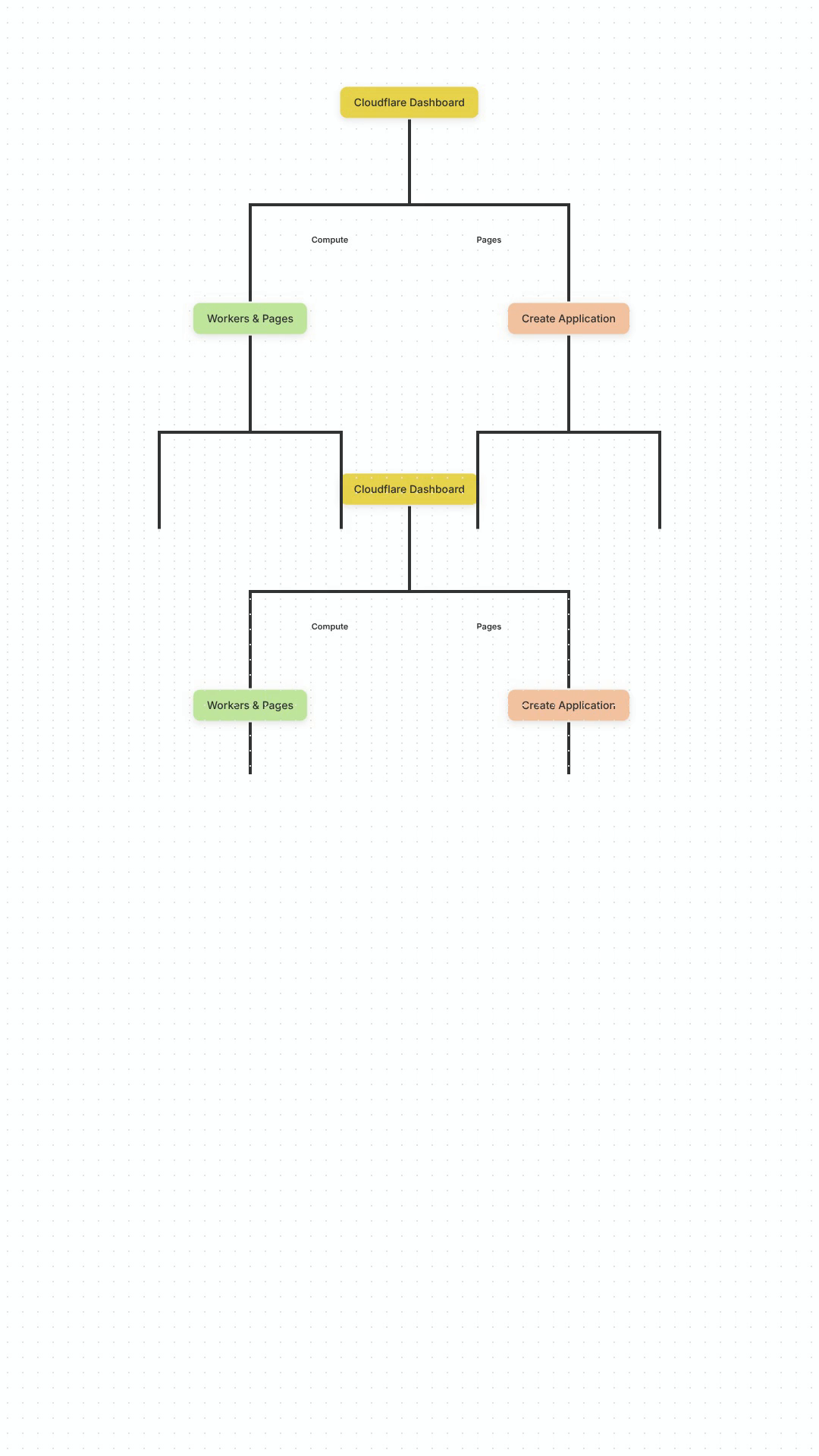

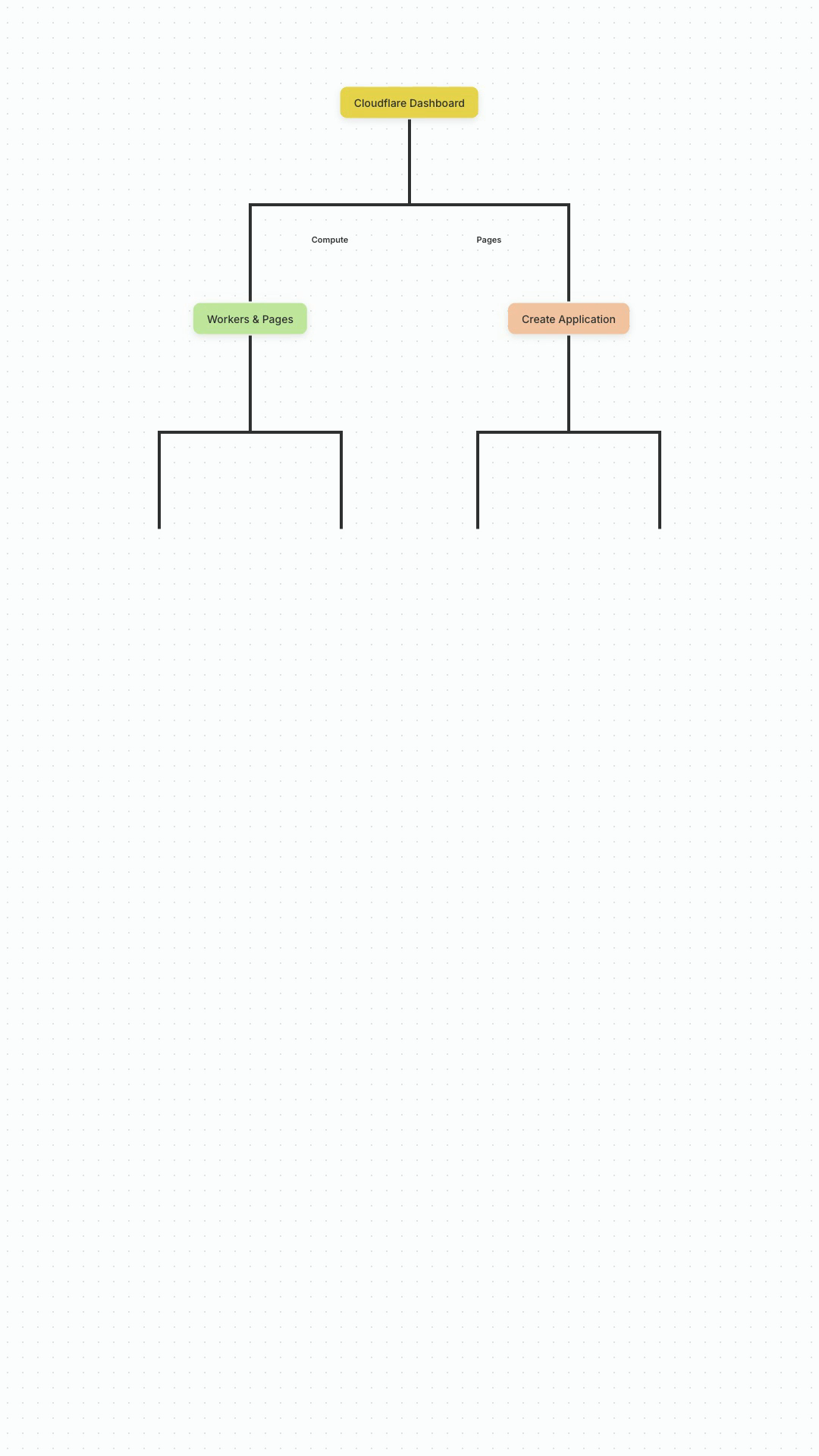

macOS arm64 native (~34 s render)	Docker linux/amd64, same files (~5 min render)
ONE instance	TWO phase-offset instances

Removing the <video> (changing nothing else) renders a single clean instance in both environments — the media-metadata event is the trigger.

Mechanism (as observed via runtime diagnostics)

On loadedmetadata/durationchange the runtime compares the captured root-timeline duration g with the media duration floor h and, when V(h) && (!V(g) || h >= g + T), emits timeline_rebind_after_media_metadata and re-runs the montage:

• metadata before capture (fast env): the !e.capturedTimeline early path re-binds before anything is mounted — harmless;
• metadata after capture starts (slow env — big DOM, large media, slow I/O): the guarded rebind re-mounts every data-composition-src host mid-capture → duplicate instance → id uniquify breaks one instance's selectors → both get composited at different timeline phases.

Which blocks make it visible

The re-mount hits every sub-composition, but visibility depends on the block: a block whose internal timeline far exceeds its window and whose animation targets scoped-id selectors (e.g. registry flowchart-vertical: 12 s timeline in a 3 s window) shows two drifting copies; blocks with timeline ≈ window duplicate "invisibly" (the twin overlaps the original). Light demo projects don't reproduce at all — metadata always beats capture — which makes this easy to miss in small tests.

Expected

Render output should be deterministic regardless of media-load timing. Candidate directions: wait for all media metadata before starting capture; freeze the montage once capture begins; or make the post-metadata rebind idempotent (skip mounting a data-composition-src host whose composition is already materialized).

Environment

• hyperframes@0.7.60, mp4 render, captureMode beginframe in both environments
• Reproduces deterministically in the slow environment (10/10 renders), never natively on the same machine

Full public repro: https://github.com/jurczykpawel/hyperframes-double-mount-repro (same composition with generated media — reproduces identically). Happy to test candidate fixes and report back.

[jurczykpawel]

Update: full public repro now available — no private footage caveat anymore.

https://github.com/jurczykpawel/hyperframes-double-mount-repro

The original composition's media was swapped for generated equivalents (ffmpeg testsrc2
video + sine-tone audio, same durations/resolutions/sizes) and the bug reproduces
identically with stock npx hyperframes@0.7.60 render:

• Docker linux/amd64 (slow I/O): two phase-offset flowchart instances at t=14 s — deterministic
• native macOS on the same machine, same files: one correct instance

This also confirms the trigger is purely mechanical (page weight + media-metadata timing), not
anything in the original footage.

[jurczykpawel]

Mechanism correction after fix-attempt experiments (sharing so it saves your team a dead end):

We patched the runtime (0.7.60 artifacts, checksum updated) to suppress the metadata-rebind path in two ways and re-rendered the failing project in the slow (Docker) environment each time:

1. skip scheduleMetadataDurationHydration's rebind once the first renderSeek was observed → duplicate still present;
2. skip it entirely on render pages (gated on a pre-head global) → duplicate still present — while the timeline_rebind_after_media_metadata diagnostic no longer fires.

Combined with an earlier observation we should have surfaced in the report: with seek diagnostics enabled, the DOM contains exactly ONE instance of the sub-composition tree for the whole window (7 .node elements, checked across the failing window) even when the captured frames show two phase-offset copies.

So the duplication does not appear to be a double mount — it looks like a double composite in the capture path (beginFrame/fast-capture) when a full-length <video> coexists: one copy at the live paint's timeline phase and one at a stale phase. That would also explain why it is environment/timing dependent and why blocks whose internal timeline ≈ window "duplicate invisibly" (both copies nearly coincide).

Facts that remain solid for triage:

• removing the <video> (nothing else) → single clean instance in every environment;
• same project + same CLI: native macOS ≈ always clean, Docker linux/amd64 ≈ always duplicated;
• repro: https://github.com/jurczykpawel/hyperframes-double-mount-repro

Happy to run further instrumented renders against candidate patches.
