Wpf3DModelFiles

A C# .NET Core library that parses common 3D model file formats into data types used by Windows Presentation Foundation (WPF).

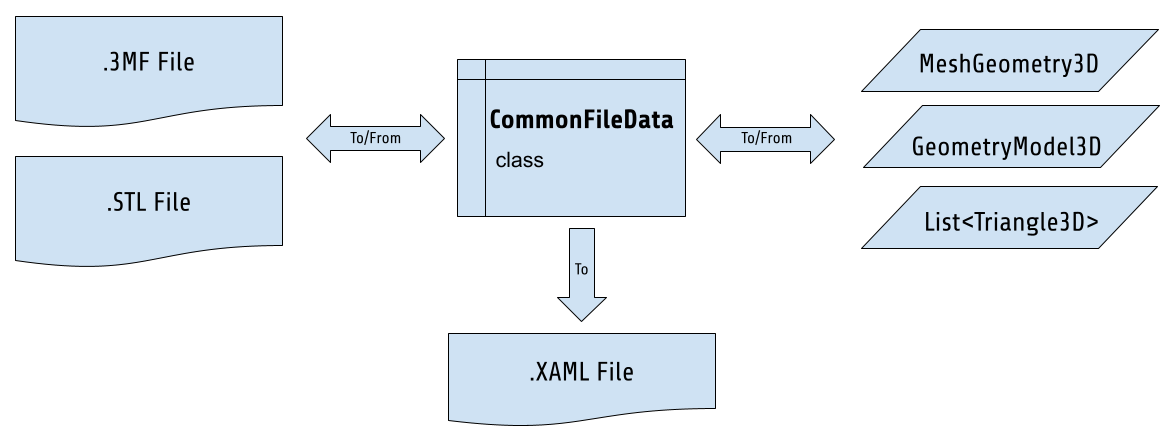

Here, this diagram should explain it:

The key trick here is the class CommonFileData, a common intermediate representation of a 3D model. CommonFileData can freely convert to and from a:

• .3MF file
• .STL file
• MeshGeometry3D
• GeometryModel3D
• List<Triangle3D> or (output only) to a .XAML markup file.
