control-hints

A library for creating control hints as TextDraw elements in Pawn (SA-MP).

Installation

Include in your code and begin using the library:

#include <control-hints>

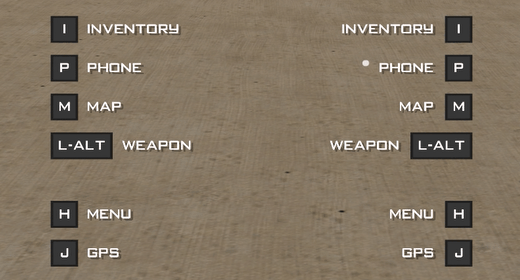

Example

CreateControlHint(playerid, 20.0, 150.0, "Inventory", "I", .show = CH_SHOW_HINT, .textAlignment = CH_TEXT_ALIGN_LEFT, .selectable = 0);
CreateControlHintBelow(playerid, 0.0, 5.0, "Phone", "P", .show = CH_SHOW_HINT, .textAlignment = CH_TEXT_ALIGN_LEFT, .selectable = 0);

Example with animation

new HintInventory[MAX_PLAYERS];

HintInventory[playerid] = CreateControlHint(playerid, 20.0, 150.0, "Inventory", "I", .show = CH_SHOW_HINT, .textAlignment = CH_TEXT_ALIGN_LEFT, .selectable = 0);

public OnPlayerKeyStateChange(playerid, newkeys, oldkeys) {

	if(newkeys == KEY_WALK) {
		StartControlHintAnimation(playerid, HintInventory[playerid], 0xFFFFFFFF, .speed = 15.0);
		return 1;
	}

	if(oldkeys == KEY_WALK) {

		if(IsControlHintAnimating(playerid, HintInventory[playerid])) {
			StopControlHintAnimation(playerid, HintInventory[playerid]);
		}
		return 1;
    }

	return 1;
}

forward OnPlayerControlHintAnimationEnd(playerid, hintid);
public OnPlayerControlHintAnimationEnd(playerid, hintid) {

	if(hintid == HintInventory[playerid]) {
		SendClientMessage(playerid, 0xFF00FFAA, "Animation ended");
	}
	return 1;
}

Functions

Click to expand the list

CreateControlHint(playerid, Float:x, Float:y, const description[], const control[], show = CH_SHOW_HINT, textAlignment = CH_TEXT_ALIGN_LEFT, selectable = 0)

Create a hint

• Float:x - X-Coordinate
• Float:y - Y-Coordinate
• description[] - Description text
• control[] - Control button text
• show - Show hint
• textAlignment - Set the text alignment (CH_TEXT_ALIGN_LEFT or CH_TEXT_ALIGN_RIGHT)
• selectable - Whether the hint is selectable

CreateControlHintBelow(playerid, Float:xOffset, Float:yOffset, const description[], const control[], show = CH_SHOW_HINT, textAlignment = CH_TEXT_ALIGN_LEFT, selectable = 0)

Create a hint below the previous hint

• Float:xOffset - X-Offset from the previous hint
• Float:yOffset - Y-Offset from the previous hint
• description[] - Description text
• control[] - Control button text
• show - Show hint
• textAlignment - Set the text alignment (CH_TEXT_ALIGN_LEFT or CH_TEXT_ALIGN_RIGHT)
• selectable - Whether the hint is selectable

CreateControlHintAbove(playerid, Float:xOffset, Float:yOffset, const description[], const control[], show = CH_SHOW_HINT, textAlignment = CH_TEXT_ALIGN_LEFT, selectable = 0)

Create a hint above the previous hint

• Float:xOffset - X-Offset from the previous hint
• Float:yOffset - Y-Offset from the previous hint
• description[] - Description text
• control[] - Control button text
• show - Show hint
• textAlignment - Set the text alignment (CH_TEXT_ALIGN_LEFT or CH_TEXT_ALIGN_RIGHT)
• selectable - Whether the hint is selectable

DestroyControlHint(playerid, &hintid)

Destroy a control hint

• playerid - The ID of the player
• hintid - The ID of the hint
• Note: hintid will be set to 0 after being destroyed

DestroyAllControlHints(playerid)

Destroy all control hints for a player

• playerid - The ID of the player

IsControlHintValid(playerid, hintid)

Check if a control hint is valid

• playerid - The ID of the player
• hintid - The ID of the hint
• Returns true if the hint is valid, false otherwise

ShowControlHint(playerid, hintid)

Show a control hint

• playerid - The ID of the player
• hintid - The ID of the hint

HideControlHint(playerid, hintid)

Hide a control hint

• playerid - The ID of the player
• hintid - The ID of the hint

IsControlHintVisible(playerid, hintid)

Check if a control hint is visible

• playerid - The ID of the player
• hintid - The ID of the hint
• Returns true if the hint is visible, false otherwise

HideAllControlHints(playerid, bool:remember = false)

Hide all control hints for a player

• playerid - The ID of the player
• remember - Whether to remember the hidden state
• Note: remember - if true, hints that were visible will be restored by ShowAllControlHints

ShowAllControlHints(playerid)

Show all control hints for a player

• playerid - The ID of the player

UpdateControlHintText(playerid, hintid, const description[], const control[] = "", show = CH_SHOW_HINT)

Update the text of a control hint

• playerid - The ID of the player
• hintid - The ID of the hint
• description[] - New description text
• control[] - New control button text
• show - Show or hide the hint after updating

SetControlHintAnchorX(playerid, hintid, Float:offset = 0.0)

Sets the anchor X position to the hint's X, used as the base for CreateControlHintAbove/Below.

• playerid - The ID of the player
• hintid - The ID of the hint
• offset - The X offset from the anchor point

SetControlHintAnchorY(playerid, hintid, Float:offset = 0.0)

Sets the anchor Y position to the hint's Y, used as the base for CreateControlHintAbove/Below.

• playerid - The ID of the player
• hintid - The ID of the hint
• offset - The Y offset from the anchor point

SetControlHintPosition(playerid, hintid, Float:x, Float:y, show = CH_SHOW_HINT)

Set the position of a control hint

• playerid - The ID of the player
• hintid - The ID of the hint
• x - The X position
• y - The Y position
• show - Show or hide the hint after setting the position

GetControlHintPosition(playerid, hintid, &Float:x, &Float:y, Float:xOffset = 0.0, Float:yOffset = 0.0)

Get the position of a control hint

• playerid - The ID of the player
• hintid - The ID of the hint
• x - The X position
• y - The Y position
• xOffset - The X offset from the anchor point
• yOffset - The Y offset from the anchor point

StartControlHintAnimation(playerid, hintid, backgroundColor, Float:speed = 15.0)

Start a control hint animation

• playerid - The ID of the player
• hintid - The ID of the hint
• backgroundColor - The background color of the animation
• speed - The speed of the animation
• Calls OnPlayerControlHintAnimationEnd when the animation ends

StopControlHintAnimation(playerid, hintid)

Stop a control hint animation

• playerid - The ID of the player
• hintid - The ID of the hint

IsControlHintAnimating(playerid, hintid)

Check if a control hint is animating

• playerid - The ID of the player
• hintid - The ID of the hint
• Returns true if the hint is animating, false otherwise

HighlightControlHintBackground(playerid, hintid, backgroundColor, timeout = 1000)

Highlight the background of a control hint

• playerid - The ID of the player
• hintid - The ID of the hint
• backgroundColor - The background color to highlight
• timeout - The duration of the highlight in milliseconds

Callbacks

Click to expand the list

public OnPlayerControlHintAnimationEnd(playerid, hintid)

Called when a control hint animation ends

• playerid - The ID of the player
• hintid - The ID of the hint

public OnPlayerControlHintClicked(playerid, hintid)

Called when a control hint is clicked

• playerid - The ID of the player
• hintid - The ID of the hint

Definition

Click to expand the list

#define CH_MAX_CONTROL_HINTS 32

#define CH_DESCRIPTION_LENGTH 128
#define CH_CONTROL_LENGTH 64

#define CH_LETTER_SIZE_X 0.1598
#define CH_LETTER_SIZE_Y 0.9199
#define CH_BACKGROUND_HEIGHT 11.5
#define CH_HINT_STACK_GAP 1.0

#define CH_BACKGROUND_COLOR 0x1e1e1eFF
#define CH_FOREGROUND_COLOR 0x353535FF

#define CH_TEXT_COLOR 0xFFFFFFFF
#define CH_DESCRIPTION_COLOR 0xFFFFFFFF

#define CH_INVALID_ID 0

#define CH_TEXT_ALIGN_LEFT 		1
#define CH_TEXT_ALIGN_RIGHT 	3

#define CH_HIDE_HINT 	0
#define CH_SHOW_HINT 	1
