Custom Slider

Custom Slider is a library for adding a slider component to a custom question.

Usage

1. Create a SliderOpenComponent object

new customQuestionsLibrary.SliderOpenComponent(question, questionViewSettings, sliderSettings);

2. Before creating a SliderOpenComponent object you can change slider's settings. For instance:

sliderSettings = {
  direction: 'vertical',
  isQuestionValue: true,
  isCustomScale: true,
  containerSize: 400,
  customScale: {
      min: -10,
      max: 10,
      start: 0,
      step: 2
  }
}

Default slider's settings are the following:

const DEFAULT_SLIDER_SETTINGS = {
    direction: SLIDER_DIRECTION.horizontal,
    isQuestionValue: true,
    isCustomScale: true,
    containerSize: 600,
    customScale: {
        min: -10,
        max: 10,
        start: '',
        step: 1
    }
}

They can be found in slider-default-settings.js. If sliderSettings object is null these default settings are used. If any property is missing or is null/undefined/NaN corresponding default value is used. Possible directions are the following:

• SLIDER_DIRECTION.horizontal: 'horizontal'
• SLIDER_DIRECTION.vertical: 'vertical' - standard vertical slider with no value handle located at the top of the slider, values ascending from top to bottom.
• SLIDER_DIRECTION.verticalBtt: 'verticalBtt' - vertical slider with no value handle located at the bottom of the slider, values ascending from bottom to top.

Properties isQuestionValue and isCustomScale imply the following meaning:

• If isQuestionValue = true then a slider will set a value of a question, if it's false, only a slider value will change.

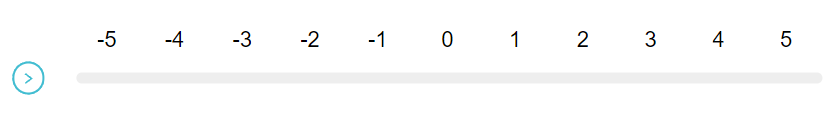

• isCustomScale should be true for OpenForm, and false for SingleForm, GridForm. If it's true the slider will take a form of a scale with a range from customScale.min to customScale.max with customScale.step step between values and customScale.start as a start point. '' start point = handle in no value position.

3. An example of how you can implement slider options on Custom Settings page is in the design/index.html (see comments there).
4. Properties isQuestionValue and isCustomScale should be also set in design/index.js and should be equal to the previous ones (see examples for fields' validation there).

Events

You can subscribe to slider's change event like so:

let sliderComponent = new customQuestionsLibrary.SliderOpenComponent(question, questionViewSettings, sliderSettings);
sliderComponent.changeEvent.on(function() {
  console.log(sliderComponent.getSliderValue());
});

Code snippets

To hide all labels:

function hideLabels() {
     document.querySelector('.cf-single-slider-question__labels').style.display = "none";
}
window.addEventListener("load", hideLabels);
