Spring Web development Exercise 4.

Chat Application with Spring MySQL & WebSocket.

MySQL

This app connects to MySQL on port 3306 There are 2 ways to instantiate MySQL

Option 1: manually

See application.properties connection details

Option 2: Docker

1. Make sure Docker daemon is running

cd mysql_docker
. run.sh

Program overview

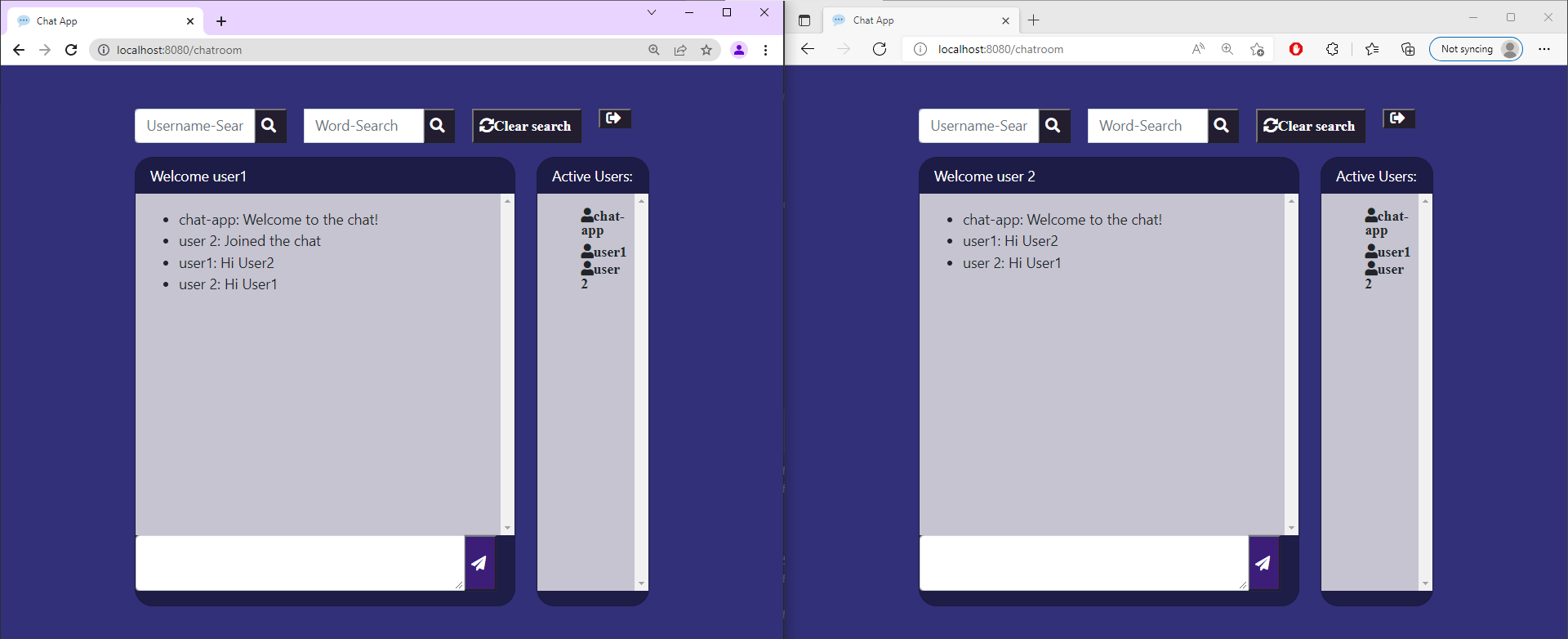

This is a simple chat app with a single chatroom. Websocket was used to connect all users to one chatroom. There are 2 Pages in this application: 1. Login Page 2. Chatroom Page. The user logs in in the login page and can chat with any other user logged on.

Thymeleaf design.

1. default.html - All Thyemeleaf templates must derive their layouts from default.html
2. fragments.html Various fragments exist in fragments.html that can be used by multiple templates.

Thymleaf Templates

1. chat-client.html - The chatroom.
2. login.html - The

JavaScript

chat-client.js:.

In this JS file we connect to the Websocket from th clients side. And hold all of the client-side logic for sending and receiving messages using

searching.js:.

Here lies the code relevant to searching functionalities in the chatroom. The 2 searches are:

1. Searching for messages containing a sub-string/word.
2. Searching for messages by a particular user.

CSS

css for all pages can be found in styels.css

Databases:

This Application instantiates a two tables in a MySQL Database.

1. User table - for storing all connected users with their session ID's
2. Message table for storing all messages sent in the chat.

When the user logs in:

1. The username is passed to the API from the login form.
2. The API triggers creating the User element in the User database.
3. The user is then redirected to the chatroom page.
4. When entering the chatroom the user subscribes to the websocket endpoint.

Now when any message is sent the client reads and executes showing the message.

3 Exceptions can occur during runtime:

1. The user tries to log in but a user with the same name is logged in.
2. The user tries to access the chatroom before logging in
3. The user tries to log in while still connected to the chat in the same session.
   In All three cases the user is redirected to the Login Page. And the relevant error message is displayed on the top of the page using thyeme-leaf.

Code Structure

REST API

The api package is the REST API for connecting to each Database, "user" and "message". For the user Database there is the internal user package and for message there is the message package.

message package

Message

Message holds all information about a message.
Messages are stored in "message" table in DB.

MessageConfig

In this class we can instantiate our Massage DB. MessageController This acts as the endpoint to our Messages API.

MessageService

This is the Service Layer of "message" DB.

MessageRepository

This is the repository layer for our message database.

MassageType

This is an Enum class for determining the type of message that was sent. Based on a messages type, the front end can decide how to react.

user package

User

User holds all information about a User. Users are stored in "user" table in DB.

UserConfig

In this class we can instantiate our User DB.

UserController

This acts as the endpoint to our User API.

UserService

This is the Service Layer of "user" DB.

UserRepository

This is the repository layer for our user database.

controllers Package

Here we hold our controllers that are not part of the REST API.

PageController

This class controls HTTP Request mapping of our app. This include: login, logout and chatroom.

ChatController

This Class is in charge of mapping messages sent by WebSocket. exception Package Here we store various Custom Runtime Exceptions. As well, we have a Exception handler for these Exceptions.

UserExceptionHandler

This ControllerAdvice is in charge of routing all User related exceptions. UserAlreadyRegisteredException Instantiates a new User already registered exception.

UserNotExistException

Instantiates a new User not exist exception.

web_socket

Here we hold all of the server side logic for instantiating our Websocket protocol.

WebSocketConfig

This class configures our STOMP endpoints. Connects to Event listeners and Handshake interceptors.

WebSocketEventListener

This class Handles Websocket Events. Custom Handles for CONNECT and DISCONNECT exist here.

HttpHandshakeInterceptor

This class intercepts the WebSocket handshake. Here session attributes are added to STOMP protocol. As well, in the event of refreshing the page, we make sure the user is not removed from the database.

WebSocketAuthInterceptor

Web socket authentication interceptor. This interceptor Class can be used to validate the messages being passed. Unfortunately, no authentication was implemented in this project so this has no use to us.
