Laser settings

Laser settings in VisiCut for different materials
Notation: power/speed in percent

Plywood (Sperrholz)

Material	Thickness	Cut	Mark	Engrave	3D Engrave	User	Date	Comments
Poplar	4mm	100/2,5	13/10	15/30		Flo	10.12.2021	pre-setting by fab-machines
Poplar	6mm	100/2	13/10	15/30		Flo	10.12.2021	pre-setting by fab-machines
Poplar	10mm	100/1,2				Flo	18.01.2022	good results, 1.3 left a few fibers

MDF

Material	Thickness	Cut	Mark	Engrave	3D Engrave	User	Date	Comments
MDF "kraftplex"	1,5mm	100/4,7				Weja	21.12.2021

Plexiglass / PMMA

Material	Thickness	Cut	Mark	Engrave	3D Engrave	User	Date	Comments
PMMA Plexiglass black	3mm	100/1,4		15/30		Flo	10.12.2021	Cutting speed possibly on the low side.
PMMA clear	6mm	100/0,8	13/10			Weja	14.12.2021	Very clean result for cutting and marking

Cardboard

Material	Thickness	Cut	Mark	Engrave	3D Engrave	User	Date	Comments
corrugated cardboard (Wellpappe)	1,7mm	100/30		12/50		HH	10.12.2021	Didn't cut through at fast straight lines, consider slower speed! White cb engraved in perfectly brownish color, not burned
currugated cardboard	1,7mm	30/6				Flo	10.12.2021	Just barely cut through. Some fibers still remained, but easy to break out.

Tile (glazed)

Material	Thickness	Cut	Mark	Engrave	3D Engrave	User	Date	Comments

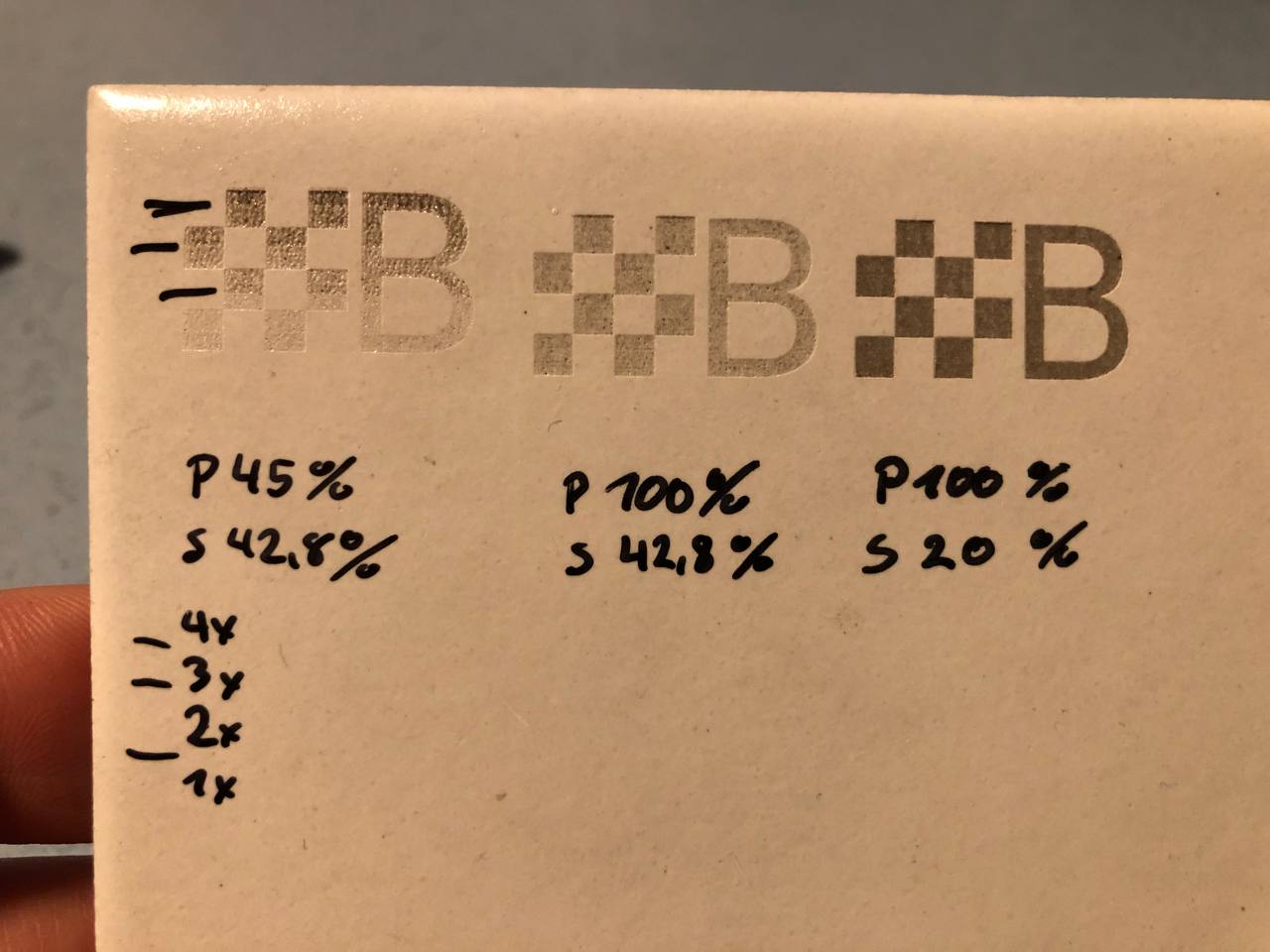

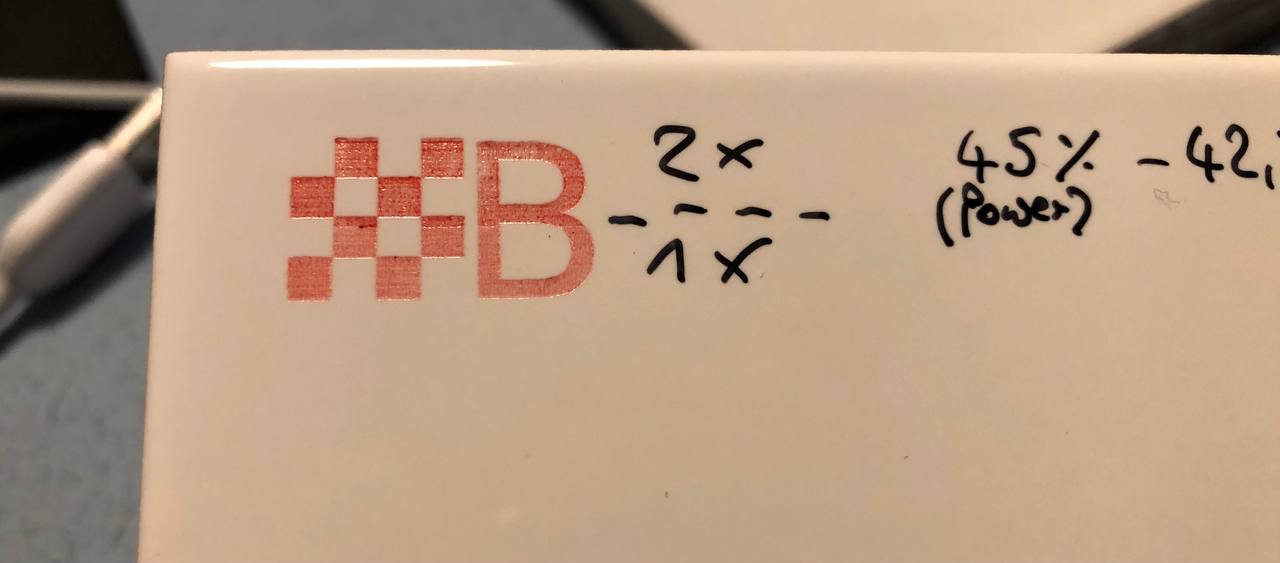

Brown clay				45/42,8 Multible passes See pic		HH/Flo	15.03.2021	Colored with whiteboard marker. Glaze was not completely removed.

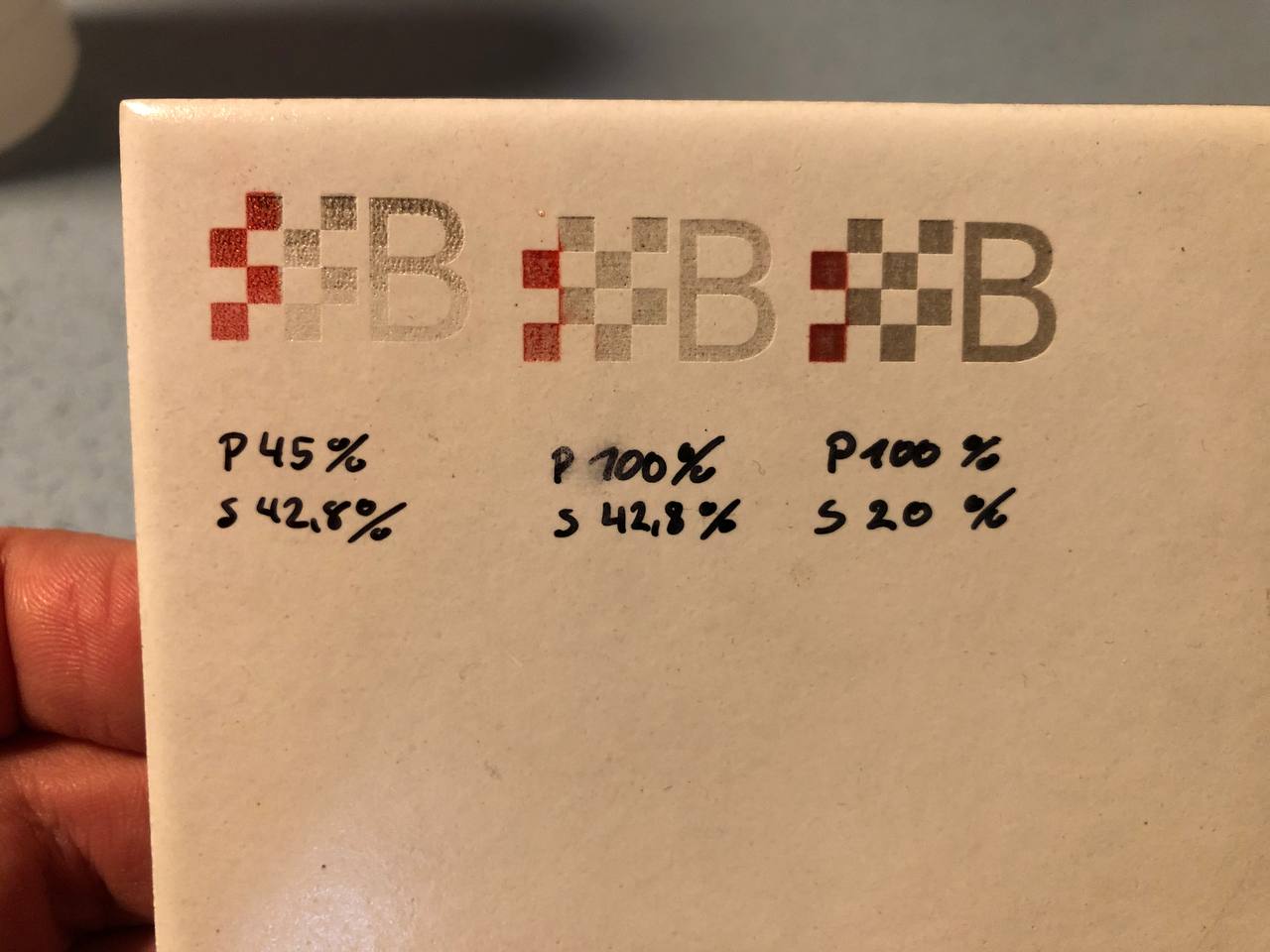

Gray clay				See pic		HH/Flo	15.03.2021	Glaze was mostly removed. Same tile colored with whiteboard marker.

PU-Foam (aka. PUR-Foam)

Material	Thickness	Cut	Mark	Engrave	3D Engrave	User	Date	Comments

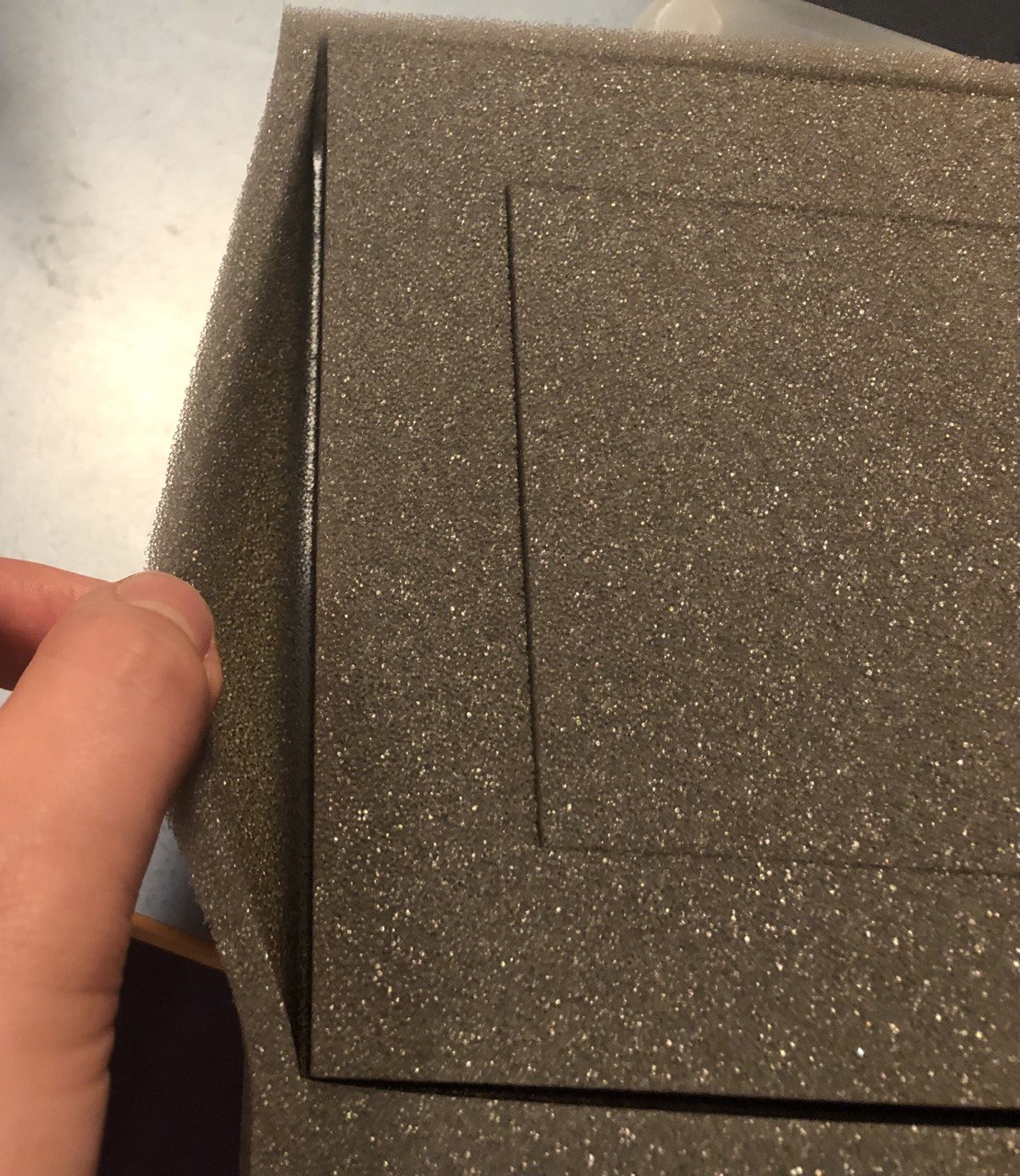

terrapur®	30mm	100/4				Flo	18.10.2022	This setting leaves a tiny bit, which can easily tear away. Some residue left 1cm below surface and lower.

Laminating pouch (PET)

Material	Thickness	Cut	Mark	Engrave	3D Engrave	User	Date	Comments
laminating pouch	80 µm	45/15				Flo	08.11.2022
