Robot Framework API Automation Project

Robust API test automation framework built with Robot Framework, Python, RequestsLibrary, Docker and GitHub Actions, following modern QA engineering and CI/CD best practices.

This project demonstrates a scalable API automation architecture with reusable components, centralized configurations, JSON Schema validation, negative API testing, Docker-based execution, automated reporting and continuous integration workflows suitable for professional QA portfolios.

Features

Automated REST API validation
Modular and scalable project architecture
Reusable Robot Framework keywords
Centralized payload and endpoint management
Environment-based configuration
Multi-environment execution support
JSON Schema response validation
Positive and negative API test scenarios
Negative API testing with invalid payloads
Smoke and regression execution strategy
Docker-based test execution
Containerized execution with Robot Framework and Allure Report
CI/CD pipeline with GitHub Actions
Allure Report integration
Automated report publishing with GitHub Pages
Artifact generation and storage through GitHub Actions
Clean and maintainable test structure
Security-oriented API validations
Robot Framework LSP configuration with robot.toml

Technologies Used

Technology	Purpose
Robot Framework	Test automation framework
Python	Support libraries, custom validators and configurations
RequestsLibrary	API requests and validations
JSON Schema	API response contract validation
Docker	Containerized and reproducible test execution
GitHub Actions	Continuous Integration
Allure Report	Advanced test reporting
ReqRes API	Test API environment
dotenv	Environment variable management

Project Structure

robot-api-devsecops-tests/
│
├── .github/
│   └── workflows/
│       └── api-tests.yml
│
├── assets/
│   └── allure-report.png
│
├── resources/
│   ├── config/
│   │   ├── endpoints.py
│   │   └── variables.py
│   │
│   ├── libraries/
│   │   └── schema_validator.py
│   │
│   ├── payloads/
│   │   └── user_payloads.py
│   │
│   ├── schemas/
│   │   ├── create_user_schema.json
│   │   ├── error_response_schema.json
│   │   ├── login_success_schema.json
│   │   ├── update_user_schema.json
│   │   ├── user_schema.json
│   │   └── users_list_schema.json
│   │
│   └── keywords.robot
│
├── tests/
│   ├── auth_test.robot
│   ├── negative_test.robot
│   ├── security_test.robot
│   └── users_test.robot
│
├── .dockerignore
├── .env.example
├── .gitignore
├── Dockerfile
├── requirements.txt
├── robot.toml
├── run_tests.bat
└── README.md

Test reports and execution outputs are generated locally, through Docker or by GitHub Actions and should not be committed to the repository.

Generated files and folders such as the examples below are ignored by Git:

reports/
output/
allure-results/
allure-report/
log.html
report.html
output.xml
.env

Test Coverage

Authentication Tests

Validate successful login
Validate login without password
Validate successful login response schema
Validate error response schema for authentication errors

Security Tests

Validate request without API key
Validate request with invalid API key
Validate security headers

User API Tests

Validate get existing user
Validate get users list
Validate non-existing user
Validate user creation
Validate user update
Validate user deletion
Validate response structure

Schema Validation Tests

Validate existing user response schema
Validate users list response schema
Validate created user response schema
Validate updated user response schema
Validate successful login response schema
Validate error response schema

Negative Payload Tests

Validate login without email
Validate login with empty payload
Validate register without password
Validate register with empty payload

Local Setup

1. Clone Repository

git clone https://github.com/alicemavila/robot-api-devsecops-tests.git
cd robot-api-devsecops-tests

2. Create Virtual Environment

python -m venv venv

3. Activate Virtual Environment

Windows CMD

venv\Scripts\activate

Windows PowerShell

.\venv\Scripts\Activate.ps1

Linux / Mac

source venv/bin/activate

4. Install Dependencies

pip install -r requirements.txt

Environment Configuration

Create a .env file in the project root directory based on the .env.example file.

`.env.example`

ENVIRONMENT=dev
BASE_URL=https://reqres.in/api
API_KEY=YOUR_API_KEY
DEFAULT_TIMEOUT=30
VERIFY_SSL=True

Local `.env`

ENVIRONMENT=dev
BASE_URL=https://reqres.in/api
API_KEY=YOUR_API_KEY
DEFAULT_TIMEOUT=30
VERIFY_SSL=True

Never commit the .env file because it may contain sensitive information such as API keys, tokens or credentials.

Multi-Environment Support

This project supports environment-based configuration through the ENVIRONMENT variable.

Available environment examples:

ENVIRONMENT=dev
ENVIRONMENT=hml
ENVIRONMENT=prod
ENVIRONMENT=ci

The environment configuration is managed in:

resources/config/variables.py

The default environment is:

ENVIRONMENT=dev

In CI/CD, the environment is configured as:

ENVIRONMENT=ci

Running Tests

Execute Complete Test Suite

robot -d reports tests/

Execute Smoke Tests

robot -i smoke -d reports tests/

Execute Regression Tests

robot -i regression -d reports tests/

Execute Negative Tests

robot -i negative -d reports tests/

Execute Tests Using Windows Batch File

run_tests.bat

Docker Execution

This project supports containerized test execution using Docker.

Docker execution allows the test suite to run in a standardized environment, reducing local setup issues related to Python, dependencies, Java and Allure CLI.

Build Docker Image

docker build -t robot-api-devsecops-tests .

Run Tests with Docker

Windows PowerShell

docker run --rm --env-file .env -v "${PWD}/reports:/app/reports" robot-api-devsecops-tests

Windows CMD

docker run --rm --env-file .env -v "%cd%/reports:/app/reports" robot-api-devsecops-tests

Linux / Mac

docker run --rm --env-file .env -v "$(pwd)/reports:/app/reports" robot-api-devsecops-tests

The Docker execution runs the full Robot Framework test suite and generates Robot Framework reports and Allure report files inside the reports directory.

Expected execution result:

15 tests, 15 passed, 0 failed

Docker Reports

After running the tests with Docker, the generated reports will be available in:

reports/

Main report files:

reports/output.xml
reports/log.html
reports/report.html
reports/allure-results/
reports/allure-report/

To serve the generated Allure report locally without using Allure CLI, run:

python -m http.server 8080 --directory reports/allure-report

Then access:

http://localhost:8080

Allure Report

Generate Allure Results

Windows PowerShell

robot --listener "allure_robotframework;reports/allure-results" --outputdir reports tests/

Windows CMD

robot ^
--listener "allure_robotframework;reports/allure-results" ^
--outputdir reports ^
tests/

Linux / Mac

robot \
--listener "allure_robotframework;reports/allure-results" \
--outputdir reports \
tests/

Generate Allure Report

allure generate reports/allure-results -o reports/allure-report --clean

Open Allure Report

allure open reports/allure-report

Serve Allure Report

allure serve reports/allure-results

Allure CLI and Java must be installed locally to generate and open the Allure report on your machine.

If you do not want to install Allure CLI locally, use the Docker execution instead.

Live Reports

GitHub Pages

Access the published Allure Report:

https://alicemavila.github.io/robot-api-devsecops-tests/

CI/CD Pipeline

This project uses GitHub Actions for automated execution and reporting.

Pipeline execution includes:

Repository checkout
Python setup
Dependency installation
Environment variable creation
Automated Robot Framework execution
Allure results generation
Allure report generation
Robot Framework report artifact upload
Allure report artifact upload
GitHub Pages deployment

GitHub Secrets

The following secrets should be configured in GitHub Actions:

Secret	Description
BASE_URL	Base API URL used during CI execution
API_KEY	API key used to authenticate requests against the ReqRes API

Recommended values:

BASE_URL=https://reqres.in/api
API_KEY=YOUR_API_KEY

To configure them:

Go to the GitHub repository
Click on Settings
Go to Secrets and variables
Click on Actions
Create the required repository secrets

JSON Schema Validation

This project validates API response contracts using JSON Schema.

Schemas are stored in:

resources/schemas/

The custom validation library is stored in:

resources/libraries/schema_validator.py

Schema validation helps ensure that API responses follow the expected structure, required fields and data types.

Robot Framework LSP Configuration

This project includes a robot.toml file to improve Robot Framework Language Server support in editors such as VSCode.

The configuration helps the editor resolve Python variable files and avoid false-positive warnings for variables loaded from:

resources/config/variables.py
resources/config/endpoints.py

Best Practices Applied

Modular architecture
Separation of concerns
Reusable keywords
Centralized configurations
Centralized payload management
Centralized schema management
Environment isolation
Multi-environment support
Sensitive data protection with .env and GitHub Secrets
JSON Schema validation
Positive and negative test coverage
Docker-based execution
Reproducible test environment with containers
CI/CD automation
Tagging strategy
Scalable framework structure
Automated reporting
Clean code principles
Maintainable test design
Generated reports excluded from version control
Editor/LSP configuration for improved maintainability

Important Notes

This project uses the public ReqRes API as a test environment.

Because it depends on a public API, responses and availability may vary depending on the service status, authentication rules or usage limits.

The goal of this project is to demonstrate API test automation practices, project organization, schema validation, negative testing, Docker-based execution, CI/CD integration and reporting strategy for QA portfolio purposes.

Future Improvements

Parallel execution
Performance testing integration
API contract testing
Database validation layer
Authorization validation by user role
Rate limit validation

Screenshots

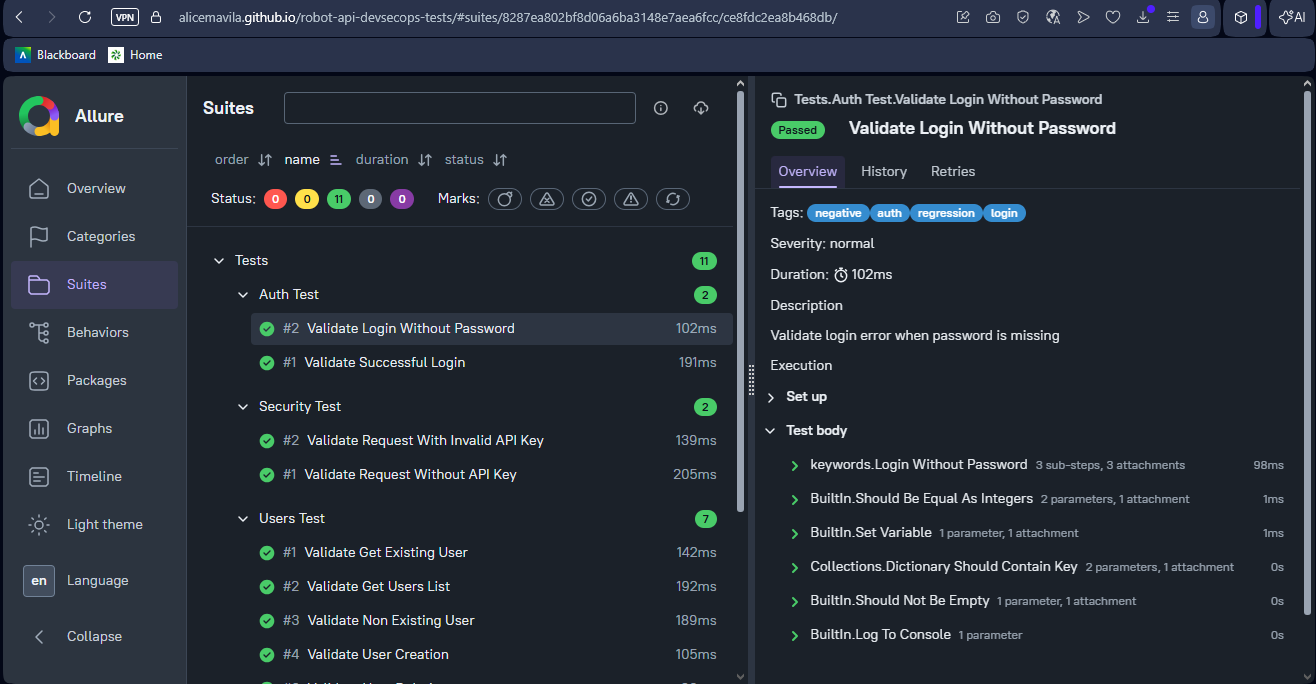

Allure Report

Author

Alice Monteiro

QA Engineer focused on:

Test Automation
API Testing
Robot Framework
Docker-based Test Execution
CI/CD Pipelines
Software Quality Engineering

GitHub: https://github.com/alicemavila

LinkedIn: https://www.linkedin.com/in/alice-m-223157119/

Name		Name	Last commit message	Last commit date
Latest commit History 14 Commits
.github/workflows		.github/workflows
assets		assets
resources		resources
tests		tests
.dockerignore		.dockerignore
.env.example		.env.example
.gitignore		.gitignore
Dockerfile		Dockerfile
README.md		README.md
requirements.txt		requirements.txt
robot.toml		robot.toml
run_tests.bat		run_tests.bat

Folders and files

Latest commit

History

Repository files navigation

Robot Framework API Automation Project

Features

Technologies Used

Project Structure

Test Coverage

Authentication Tests

Security Tests

User API Tests

Schema Validation Tests

Negative Payload Tests

Local Setup

1. Clone Repository

2. Create Virtual Environment

3. Activate Virtual Environment

Windows CMD

Windows PowerShell

Linux / Mac

4. Install Dependencies

Environment Configuration

.env.example

Local .env

Multi-Environment Support

Running Tests

Execute Complete Test Suite

Execute Smoke Tests

Execute Regression Tests

Execute Negative Tests

Execute Tests Using Windows Batch File

Docker Execution

Build Docker Image

Run Tests with Docker

Windows PowerShell

Windows CMD

Linux / Mac

Docker Reports

Allure Report

Generate Allure Results

Windows PowerShell

Windows CMD

Linux / Mac

Generate Allure Report

Open Allure Report

Serve Allure Report

Live Reports

GitHub Pages

CI/CD Pipeline

GitHub Secrets

JSON Schema Validation

Robot Framework LSP Configuration

Best Practices Applied

Important Notes

Future Improvements

Screenshots

Allure Report

Author

Alice Monteiro

About

Resources

Uh oh!

Stars

Watchers

Forks

Releases

Packages 0

Uh oh!

Contributors

Uh oh!

Languages

`.env.example`

Local `.env`

Packages
