vmware: search unmanaged instances using hypervisor name

[shwstppr]

Description

VMware code keeps a cache of existing VMs on a hypervisor host using cloud.vm.internal.name property of the VM. Searching for unmanaged instances/VMs on a host might not return an expected result when this property differs from the actual name of the VM.

To reproduce:

• Deploy a VM in vCenter
• Set custom attribute for the VM with key = cloud.vm.internal.name and value = Anything different than VM name
• listUnmanagedInstance API fails when name parameter with name of the VM
• importUnmanagedInstance API fails for the VM

Types of changes

• Breaking change (fix or feature that would cause existing functionality to change)
• New feature (non-breaking change which adds functionality)
• Bug fix (non-breaking change which fixes an issue)
• Enhancement (improves an existing feature and functionality)
• Cleanup (Code refactoring and cleanup, that may add test cases)

Screenshots (if appropriate):

How Has This Been Tested?

With API using cmk

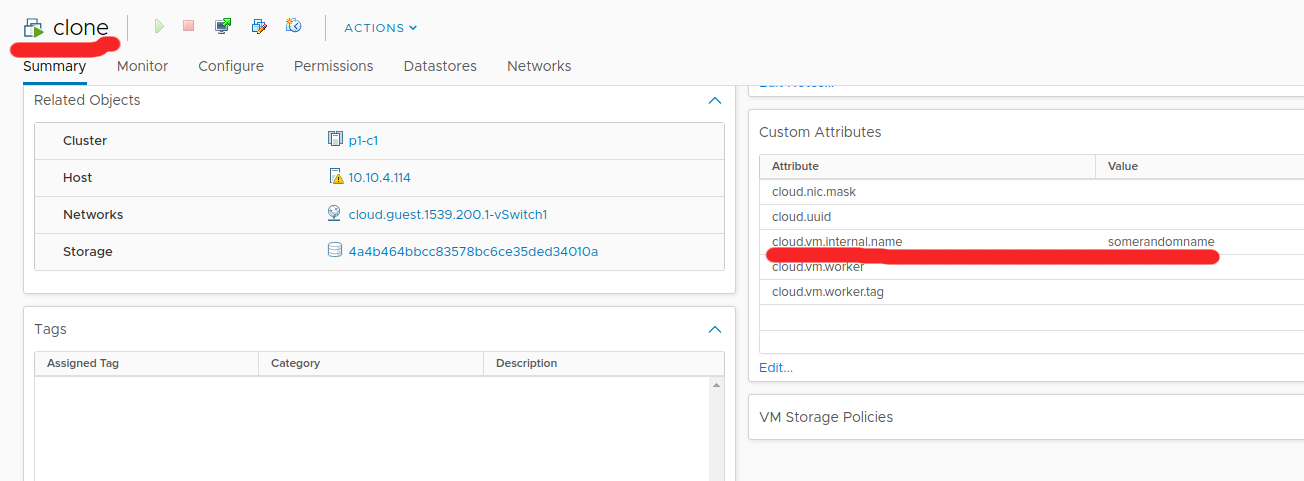

VM in vcenter having a different name and custom attribute cloud.vm.internal.name

Both listUnmanagedInstance and importUnmanagedInstance

> list unmanagedinstances clusterid=5c46e61a-4f4e-478a-8479-613156747764 name=clone
{
  "count": 1,
  "unmanagedinstance": [
    {
      "clusterid": "5c46e61a-4f4e-478a-8479-613156747764",
      "cpucorepersocket": 1,
      "cpunumber": 1,
      "cpuspeed": 0,
      "disk": [
        {
          "capacity": 2147483648,
          "controller": "ide",
          "controllerunit": 0,
          "datastorehost": "10.10.0.16",
          "datastorename": "4a4b464bbcc83578bc6ce35ded34010a",
          "datastorepath": "/acs/primary/pr4328-t2806-vmware-67u3/pr4328-t2806-vmware-67u3-esxi-pri2",
          "datastoretype": "NFS",
          "id": "10-3001",
          "imagepath": "[4a4b464bbcc83578bc6ce35ded34010a] clone/clone_5.vmdk",
          "label": "Hard disk 1",
          "position": 1
        }
      ],
      "hostid": "2ea89a56-df8f-416d-9e9c-0ca35c78a631",
      "memory": 512,
      "name": "clone",
      "nic": [
        {
          "adaptertype": "E1000",
          "id": "Network adapter 1",
          "macaddress": "02:00:6a:49:00:02",
          "networkname": "cloud.guest.1539.200.1-vSwitch1",
          "vlanid": 1539
        }
      ],
      "osdisplayname": "CentOS 4/5 or later (64-bit)",
      "osid": "centos64Guest",
      "powerstate": "PowerOn"
    }
  ]
}

> import unmanagedinstance clusterid=5c46e61a-4f4e-478a-8479-613156747764 name=clone templateid=bfc585bb-fbd0-11ea-bdc1-1e00f10138c3 serviceofferingid=bd10b24c-b742-4602-86e5-7bbb56c1329a
{
  "virtualmachine": {
    "account": "admin",
    "affinitygroup": [],
    "cpunumber": 1,
    "cpuspeed": 500,
    "created": "2020-09-21T06:56:08+0000",
    "details": {
      "dataDiskController": "osdefault",
      "deployvm": "true",
      "nicAdapter": "E1000",
      "rootDiskController": "ide"
    },
    "displayname": "clone",
    "displayvm": true,
    "domain": "ROOT",
    "domainid": "bfa279ba-fbd0-11ea-bdc1-1e00f10138c3",
    "guestosid": "bfef14e9-fbd0-11ea-bdc1-1e00f10138c3",
    "haenable": false,
    "hostid": "2ea89a56-df8f-416d-9e9c-0ca35c78a631",
    "hostname": "10.10.4.114",
    "hypervisor": "VMware",
    "id": "51989767-5ad2-4899-bfe9-253bca09bc59",
    "instancename": "clone",
    "isdynamicallyscalable": false,
    "memory": 512,
    "name": "clone",
    "nic": [
      {
        "broadcasturi": "vlan://1539",
        "extradhcpoption": [],
        "id": "a393a281-e61c-4633-b85f-fe5b83e60d06",
        "isdefault": true,
        "isolationuri": "vlan://1539",
        "macaddress": "02:00:6a:49:00:02",
        "networkid": "eeb8147d-f1af-4d0b-afa4-4936b3720952",
        "networkname": "t1net",
        "secondaryip": [],
        "traffictype": "Guest",
        "type": "L2"
      }
    ],
    "osdisplayname": "CentOS 5.3 (64-bit)",
    "ostypeid": "bfef14e9-fbd0-11ea-bdc1-1e00f10138c3",
    "passwordenabled": false,
    "rootdeviceid": 0,
    "rootdevicetype": "ROOT",
    "securitygroup": [],
    "serviceofferingid": "bd10b24c-b742-4602-86e5-7bbb56c1329a",
    "serviceofferingname": "Small Instance",
    "state": "Running",
    "tags": [],
    "templatedisplaytext": "CentOS 5.3(64-bit) no GUI (vSphere)",
    "templateid": "bfc585bb-fbd0-11ea-bdc1-1e00f10138c3",
    "templatename": "CentOS 5.3(64-bit) no GUI (vSphere)",
    "userid": "d6e87cc2-fbd0-11ea-bdc1-1e00f10138c3",
    "username": "admin",
    "zoneid": "72b53dda-ceb4-49da-9c19-9b1a4a7a143c",
    "zonename": "pr4328-t2806-vmware-67u3"
  }
}

[shwstppr]

@blueorangutan package

[blueorangutan]

@shwstppr a Jenkins job has been kicked to build packages. I'll keep you posted as I make progress.

[blueorangutan]

Packaging result: ✔centos7 ✔centos8 ✔debian. JID-2007

[yadvr]

@blueorangutan test centos7 vmware-67u3

[blueorangutan]

@rhtyd a Trillian-Jenkins test job (centos7 mgmt + vmware-67u3) has been kicked to run smoke tests

[blueorangutan]

Trillian test result (tid-2743)
Environment: vmware-67u3 (x2), Advanced Networking with Mgmt server 7
Total time taken: 55075 seconds
Marvin logs: https://github.com/blueorangutan/acs-prs/releases/download/trillian/pr4328-t2743-vmware-67u3.zip
Intermittent failure detected: /marvin/tests/smoke/test_kubernetes_supported_versions.py
Intermittent failure detected: /marvin/tests/smoke/test_outofbandmanagement.py
Intermittent failure detected: /marvin/tests/smoke/test_vpc_vpn.py
Smoke tests completed. 83 look OK, 2 have error(s)
Only failed tests results shown below:

Test	Result	Time (s)	Test File
test_01_add_delete_kubernetes_supported_version	Error	1810.38	test_kubernetes_supported_versions.py
test_oobm_zchange_password	Error	18.07	test_outofbandmanagement.py

[shwstppr]

@blueorangutan package

[blueorangutan]

@shwstppr a Jenkins job has been kicked to build packages. I'll keep you posted as I make progress.

[blueorangutan]

Packaging result: ✔centos7 ✖centos8 ✔debian. JID-2035

[shwstppr]

@rhtyd I have changed base branch as vm import was added in 4.14. Please change the milestone if needed
@blueorangutan test centos7 vmware-67u3

[blueorangutan]

@shwstppr a Trillian-Jenkins test job (centos7 mgmt + vmware-67u3) has been kicked to run smoke tests

[blueorangutan]

Trillian test result (tid-2807)
Environment: vmware-67u3 (x2), Advanced Networking with Mgmt server 7
Total time taken: 64641 seconds
Marvin logs: https://github.com/blueorangutan/acs-prs/releases/download/trillian/pr4328-t2807-vmware-67u3.zip
Intermittent failure detected: /marvin/tests/smoke/test_deploy_vm_root_resize.py
Intermittent failure detected: /marvin/tests/smoke/test_kubernetes_supported_versions.py
Intermittent failure detected: /marvin/tests/smoke/test_outofbandmanagement.py
Intermittent failure detected: /marvin/tests/smoke/test_router_dhcphosts.py
Intermittent failure detected: /marvin/tests/smoke/test_vpc_redundant.py
Smoke tests completed. 76 look OK, 2 have error(s)
Only failed tests results shown below:

Test	Result	Time (s)	Test File
test_01_add_delete_kubernetes_supported_version	Error	1808.03	test_kubernetes_supported_versions.py
test_oobm_issue_power_cycle	Error	24.38	test_outofbandmanagement.py
test_oobm_issue_power_off	Error	21.56	test_outofbandmanagement.py
test_oobm_issue_power_on	Error	22.59	test_outofbandmanagement.py
test_oobm_issue_power_reset	Error	26.35	test_outofbandmanagement.py

[yadvr]

Tests, lgtm

[DaanHoogland]

code looks good, not sure if the method rename is making anything more clear but no objections.
