Render AsyncAPI union response variants

[danielporterda]

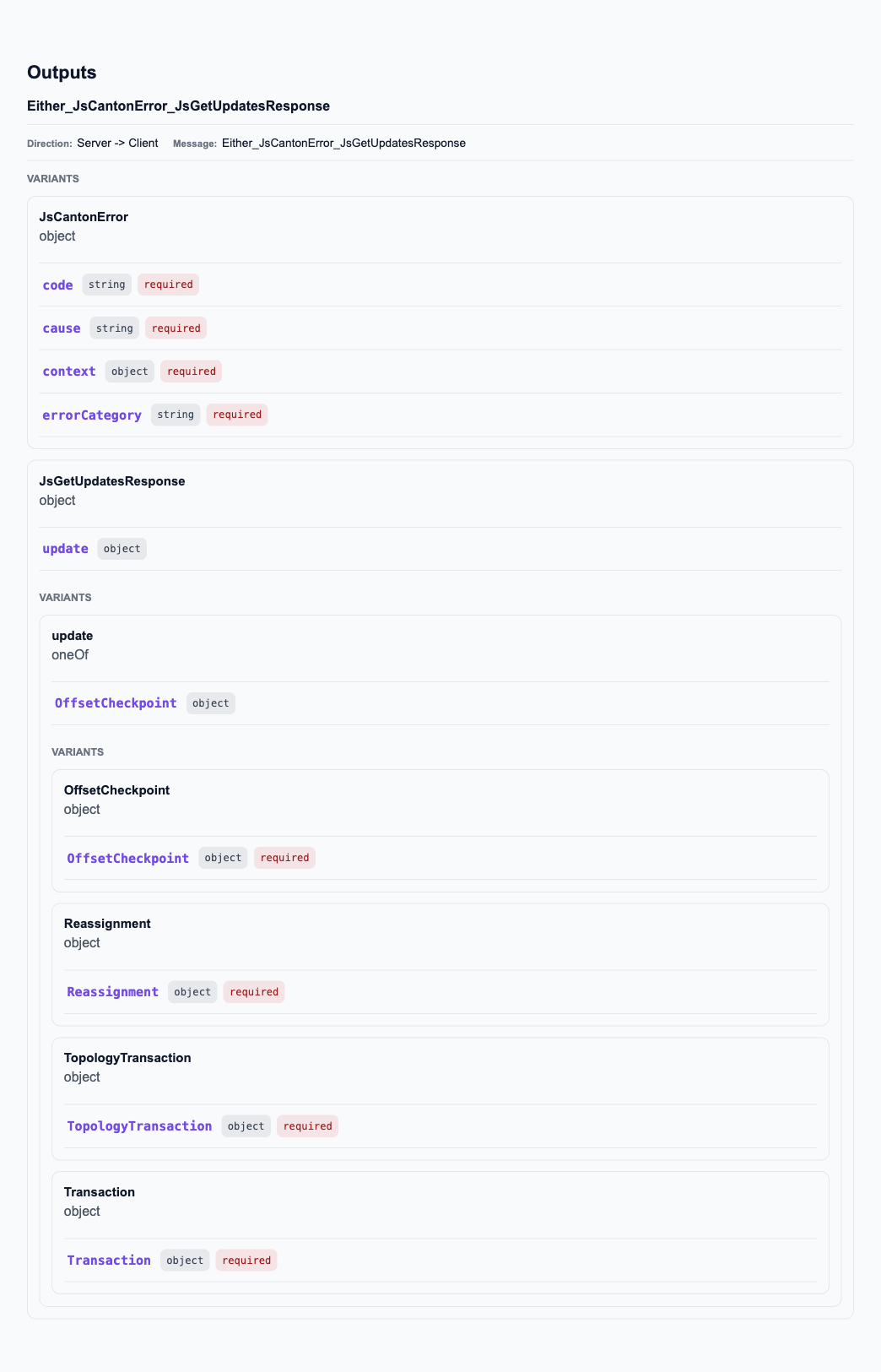

Screenshot

Shows the generated /v2/updates subscribe output schema now rendering both JsCantonError and JsGetUpdatesResponse, including the nested update variants.

Summary

• preserve AsyncAPI oneOf/anyOf payload variants in the generator instead of rendering only the first branch sample
• render variant groups in generated reference schemas, including nested property unions like JsGetUpdatesResponse.update
• regenerate JSON API AsyncAPI subscribe pages so response unions show both error and success payload shapes

Root cause

The AsyncAPI source for /v2/updates correctly models Either_JsCantonError_JsGetUpdatesResponse as oneOf [JsCantonError, JsGetUpdatesResponse], but schema_sample_value() collapsed oneOf/anyOf schemas to branch zero. Because branch zero is JsCantonError, generated docs omitted the success branch.

Validation

• python3 -m pytest tests/test_asyncapi.py
• npm run generate:json-api-asyncapi-reference
• python3 -m pytest tests/test_asyncapi.py tests/test_openrpc.py
• python3 -m py_compile src/x2mdx/asyncapi/lifecycle.py src/x2mdx/asyncapi/render.py src/x2mdx/reference_pages.py
• git diff --check

Note: I also tried tests/test_asyncapi.py tests/test_openrpc.py tests/test_protobuf.py; tests/test_protobuf.py::ProtobufTests::test_cli_builds_overview_and_package_pages failed on an existing relative-link assertion (packages/... expected, ./packages/... rendered), unrelated to this AsyncAPI change.
