Racing Brick Game

Introduction

This project represent a game from old brick (yellow colorway ofc) that i played i a lot when i was 7 years old, being hospitalized. The Racing Brick Game is an interactive and nostalgic game designed using an Arduino microcontroller that mimics the classic handheld brick games popularized in the early 2000s.

My project recreates a version of the brick "racing" game, where the player must control a moving block and avoid obstacles while racing toward a high score. The game is not complicated at all, it consists of moving a car left/right without hitting enemy cars approaching you.

This project integrates hardware and software components, demonstrating the versatility of Arduino for game development. By using a 128x64 OLED Y&B screen,buttons, and Arduino logic, the game renders visuals similar to the iconic monochrome blocks seen in classic brick games.

General Description

Modules and Components

• Arduino: The Arduino acts as the interface between hardware components and software instructions.
• Small Breadboard: The breadboard organizes connections and serves as a bridge for components to communicate electrically.
• OLED Y&B Display I2C 0.96" 128x64: The crisp, pixel-based graphics on the OLED provide a nostalgic and clear gaming experience similar to retro brick games.
• Buttons: Used for player input, such as movement and control actions in the game. They are configured with internal pull-up resistors to simplify the circuit and reduce external components.
• Wires: Use of wires ensures reliable communication and power delivery between all parts of the system.

Connection Interfaces

• OLED Y&B Display I2C 0.96" 128x64: Connected to the Arduino via the I2C interface (SDA - A4 and SCL - A5).
• Buttons : One side of the button connects to an Arduino digital pin (D2, D3, D10) and the other side of the button connects to GND.

Hardware Design

Wokwi Simulation

Electric Diagram

Component list

• 1x Arduino Uno
• 1x Breadboard
• 1x Oled I2C Display 128x64
• 3x PullUp Buttons
• Connecting wires
• 3x 1k ohm Rezistors

Component	Connected Pins
Arduino Uno R3	GND, 5V, A5 (SCL), A4 (SDA),2 (Button 1), 3 (Button 2), 10 (Button3)
OLED Y&B Display (128x64, I2C)	SCL (A5), SDA (A4), VCC, GND
Button 1	VCC, GND, Pin 2
Button 2	VCC, GND, Pin 3
Button 3	VCC, GND, Pin 10

Software Design

The software implementation for the Racing Brick Game is developed using the Arduino platform and C++ programming.

Libraries and 3rd-Party Sources Used

The following libraries and resources were utilized in this project to enhance functionality and simplify development:

1. Adafruit GFX Library

   • Provides a core set of graphics functions for drawing shapes, text, and bitmaps on a variety of displays.
   • Used to drawthe game elements such as the car, obstacles, road lines, and to score display on the OLED screen.
   • source: Adafruit GFX Library

2. Adafruit SSD1306 Library

   • A library for controlling SSD1306-based OLED displays via I2C or SPI.
   • Used for initializing and managing the 128x64 OLED display, including sending commands and rendering the game interface.
   • source: Adafruit SSD1306 Library

3. Wire Library (Built-In)

   • A built-in Arduino library for I2C communication.
   • source: pre-installed

4. Arduino Core

   • The core Arduino framework that provides the fundamental functions (setup, loop, pinMode, digitalRead, etc.).
   • source: Arduino Core

Implementation

• Start Screen and Game Over Screen:

  • The start screen is displayed when the Arduino is powered on, showing a simple menu for starting the game.
  • The game over screen appears whenever the player loses, displaying the total score for that round and allowing the player to return to the main menu.

• Main Menu:

  • Accessible when the game state is set to MENU. Players navigate the menu using the left and right buttons.
  • Two options are available in the menu:
    • Start: Begins the gameplay.
    • Exit: Turns off the screen for 5 seconds before returning to the menu.
  • Navigation:
    • Use the left and right buttons to toggle between options.
    • Press the restart button to select the currently highlighted option.

• Gameplay:

  • The player controls the movement of a car using two buttons:
    • Left Button: Moves the car to the left lane.
    • Right Button: Moves the car to the right lane.
  • Obstacles:
    • Obstacles (enemy cars) are randomly generated and move down the screen.
  • Collision Detection:
    • Ensures the game ends if the player's car collides with an obstacle.
  • Scoring System:
    • Scoring increases each time an obstacle successfully moves off the screen.
    • The game transitions to the WIN state when the player reaches a score of x points.

• Game States:

  • MENU: Displays the main menu for navigation and selection.
  • PLAYING: The active gameplay state where the player controls the car and avoids obstacles.
  • GAME_OVER: Displays the game over screen when a collision occurs.
  • WIN: Displays the "YOU WIN" screen when the player reaches the target score.

• Obstacle Generation:

  • Obstacles appear in one of two lanes, randomly chosen for each new obstacle.
  • Obstacles move downward at a fixed speed, simulating motion.

• Hardware:

  • OLED Display (128x64): Displays the graphics, including the car, obstacles, road lines, and menu options.
  • Buttons:
    • Button 1 (Left): Moves the car to the left lane.
    • Button 2 (Right): Moves the car to the right lane.
    • Button 3 (Restart): Handles menu selection and game restart functionality.

Functions Implemented

• setup() and loop():

  • These are the core Arduino functions.
  • setup() initializes the OLED display, button pins, and game variables.
  • loop() handles the main game flow based on the current game state, including menu navigation, gameplay, and screen updates.

• Interrupts:

  • The restart button (BUTTON_RESTART) uses a hardware interrupt for responsive input handling.
  • The interrupt handler handleRestartButtonPress() sets a flag (restartPressed) to restart the game or return to the menu.

• Game Logic Functions:

  • updateGame():
    • Handles obstacle movement, player car movement, and collision detection.
    • Increases the score when obstacles are successfully avoided.
  • resetGame():
    • Resets all game variables (e.g., score, obstacle positions) to start a new round.
  • handleMenuInput():
    • Handles navigation within the main menu using left and right buttons.

• Graphics Functions:

  • drawGame():
    • Renders the game screen, including the player car, obstacles, road, and score.
  • drawMenu():
    • Displays the main menu with options for "START" and "EXIT."
  • drawCar(int x, int y):
    • Draws the player's car using block-style graphics.
  • drawObstacle(int x, int y):
    • Draws obstacles that the player must avoid.
  • drawDottedLine():
    • Renders the dashed centerline of the road.

• Collision Detection:

  • Integrated into updateGame() to check for collisions between the player's car and obstacles.
  • Ends the game when a collision is detected, transitioning to the GAME_OVER state.

• Menu and Navigation:

  • The menu system allows players to navigate between "START" and "EXIT."
  • Menu logic is managed using the menuSelection variable, with buttons controlling navigation and selection.

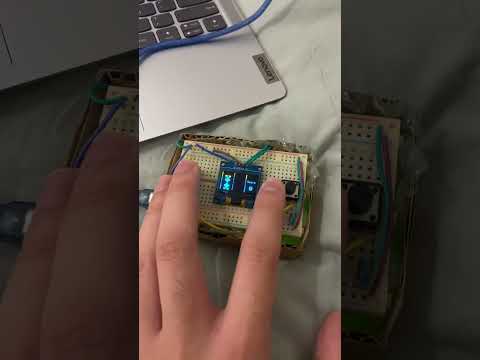

Results

DataSheet

OLED Y&B Display I2C 0.96" 128x64
