PubSubX is a framework for implementation of basic publish subscribe architecture on TCP/IP layer written in Python. It consists of two modules: Server and client. Both modules are developed using raw sockets.
Server application listens for TCP/IP requests on selected port and prints diagnostic informations (client subscribed to a topic...). It keeps track of all the clients and their subscriptions and routes their messages accordingly. It also keeps track of lost clients (that have disconnected abruptly) and messages sent to them for a certain period (default 60 seconds) Since it uses efficient Linux I/O event notification facility Epoll it can be only run on Linux OS.
Client application connects to the server and is used to interact with it and other clients (publish and receive messages). It is platform independent. It implements next set of commands
- CONNECT <port> <name> - Connects to a server at port, with name
- DISCONNECT - Disconnects from server
- PUBLISH <topic> <data> - Sends (ASCII) message on a topic
- SUBSCRIBE <topic> - Client subscribes to a topic
- UNSUBSCRIBE <topic> - Client unsubscribes from a topic
Server module must be started with port number as argument:
PubSubX $python3 server.py 12000
INFO: Server successfully started
Client is started with no arguments after which prompt text to enter command is printed. First command that must be entered is CONNECT with appropriate server port number and client name.
PubSubX $python3 client.py
Enter command or (-h): connect 12000 homer
INFO: Connection successfully established
Information about all possible commands is given when -h is entered.

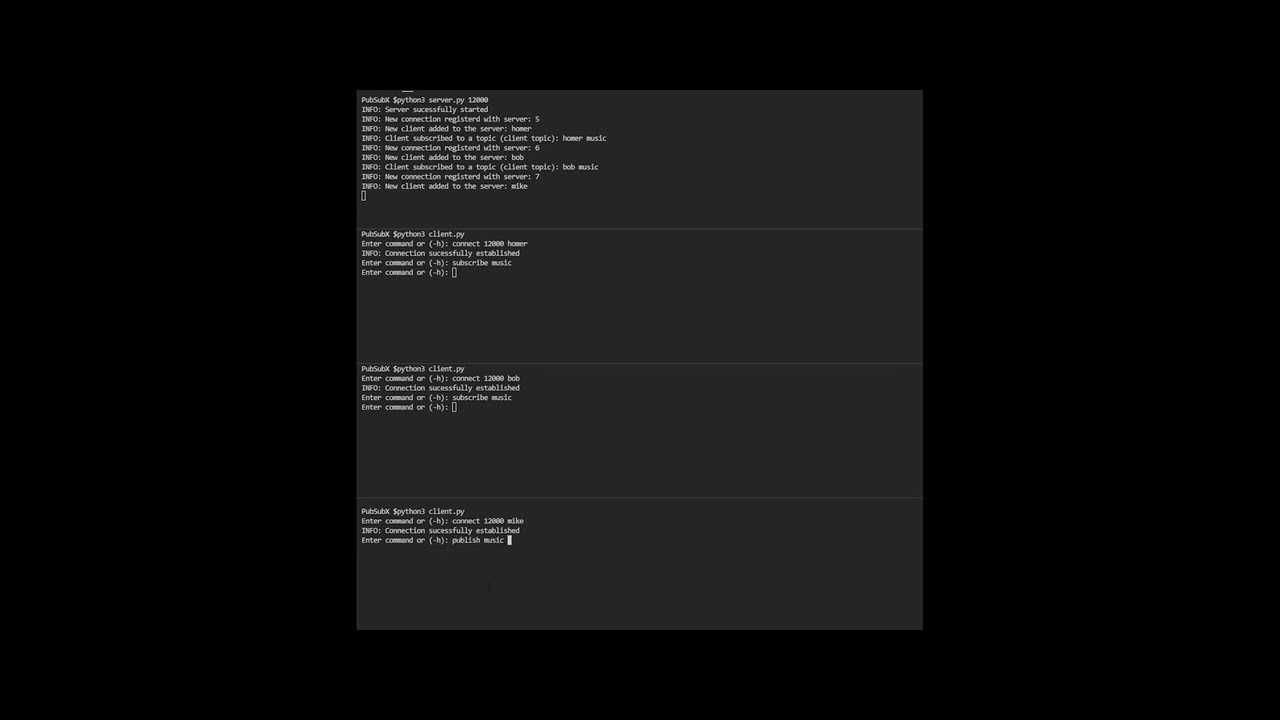

Link to the usage video is given bellow
Server module consists of 2 classes, client and server.
Client class is helper class for server's client "accounting". Server class uses
efficient Linux I/O event notification facility Epoll. Since this is Linux-only
facility this module cannot be used on other platforms. Epool is used to implement
efficient non blocking control of multiple connections between clients and server.
Simplified state machine of a single client in a server application is shown
on next picture:
Client module consists of 1 class - client. Client class uses portable select mechanism for nonblocking overview of input and output sockets for external and inter-thread communication. Client has 2 loops, one for command line interface for issuing commands and other for socket monitoring and communication with server. These 2 loops communicate via sockets, command loop sends messages over to socket loop.
