Outside-plant (OSP) fibre management for NetBox. netbox-osp extends NetBox's dcim models with a full OSP data model — cables, buffer tubes, strands, splice closures, trays, and end-to-end fibre links — and pairs it with a full-screen interactive plant map. The plugin is offline-first (no PostGIS, no upstream tile servers required), applies TIA-598-C colour ordering automatically, and computes a per-link loss budget so operators can see at a glance whether a span meets its attenuation target.

Screenshots

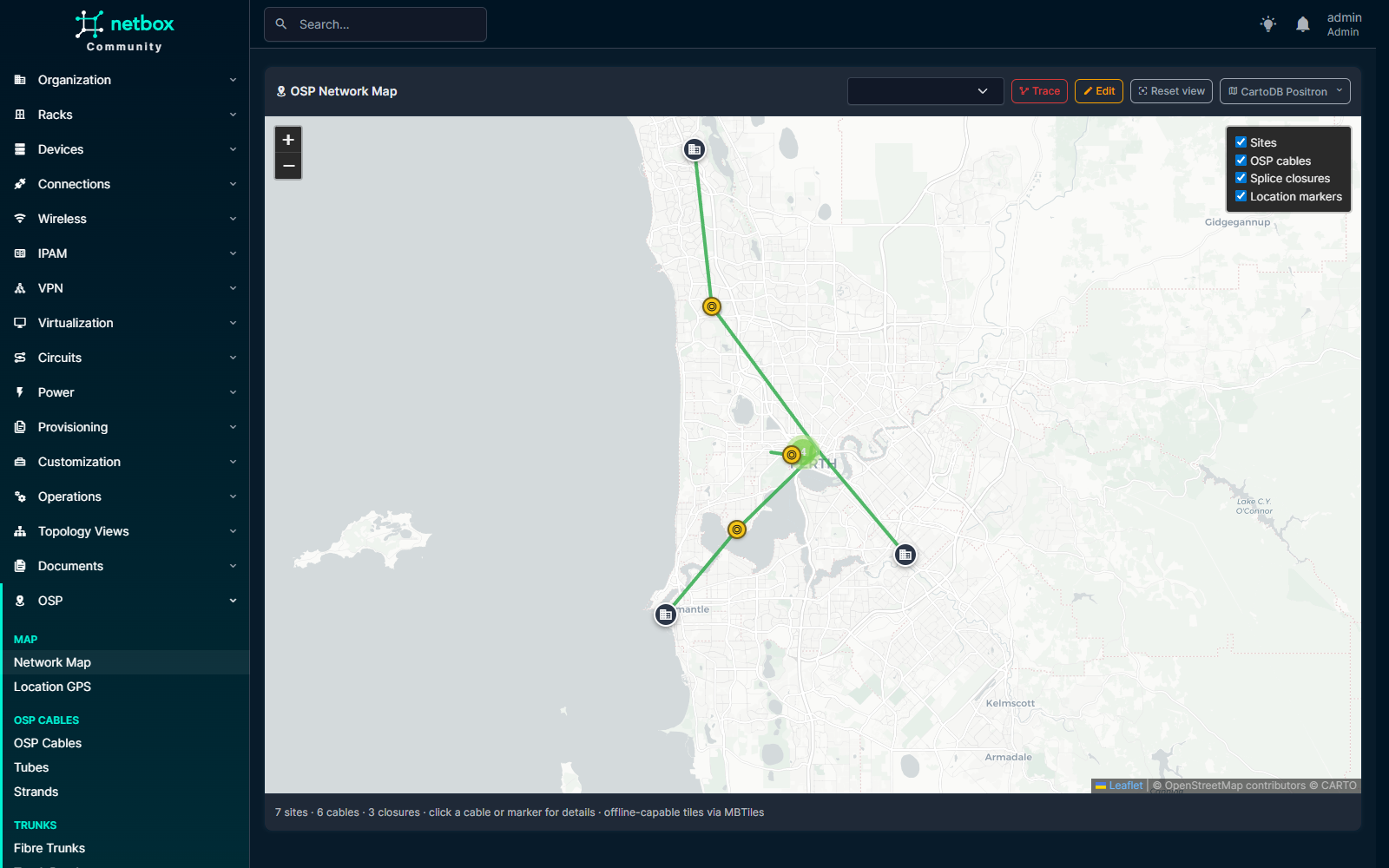

_{Full-screen Leaflet plant map at /plugins/osp/map/ — OSP cables, splice closures, Sites, and per-Location markers all filterable.}

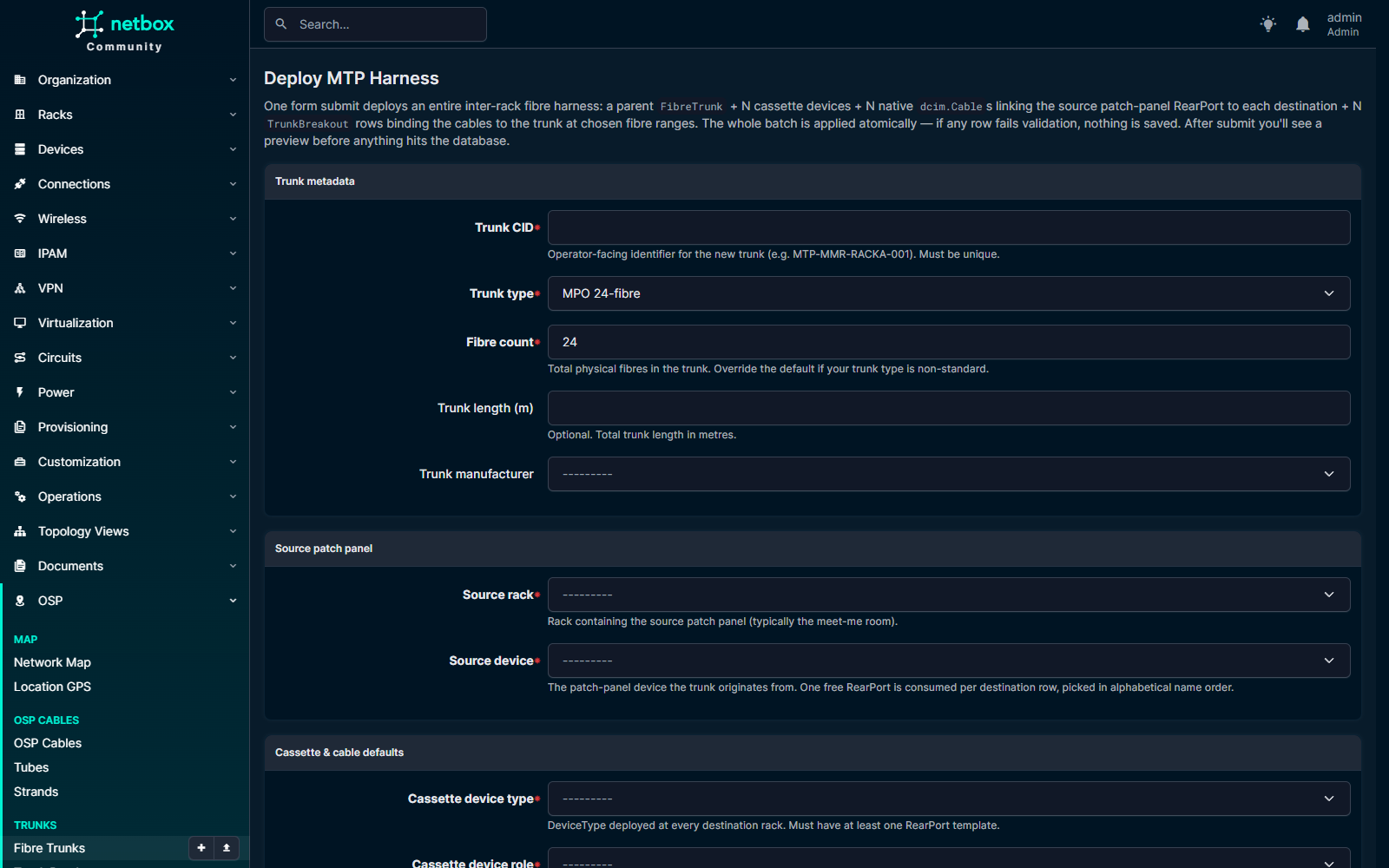

_{One form submit atomically deploys a parent FibreTrunk + N cassette devices + N cables + N TrunkBreakout rows.}

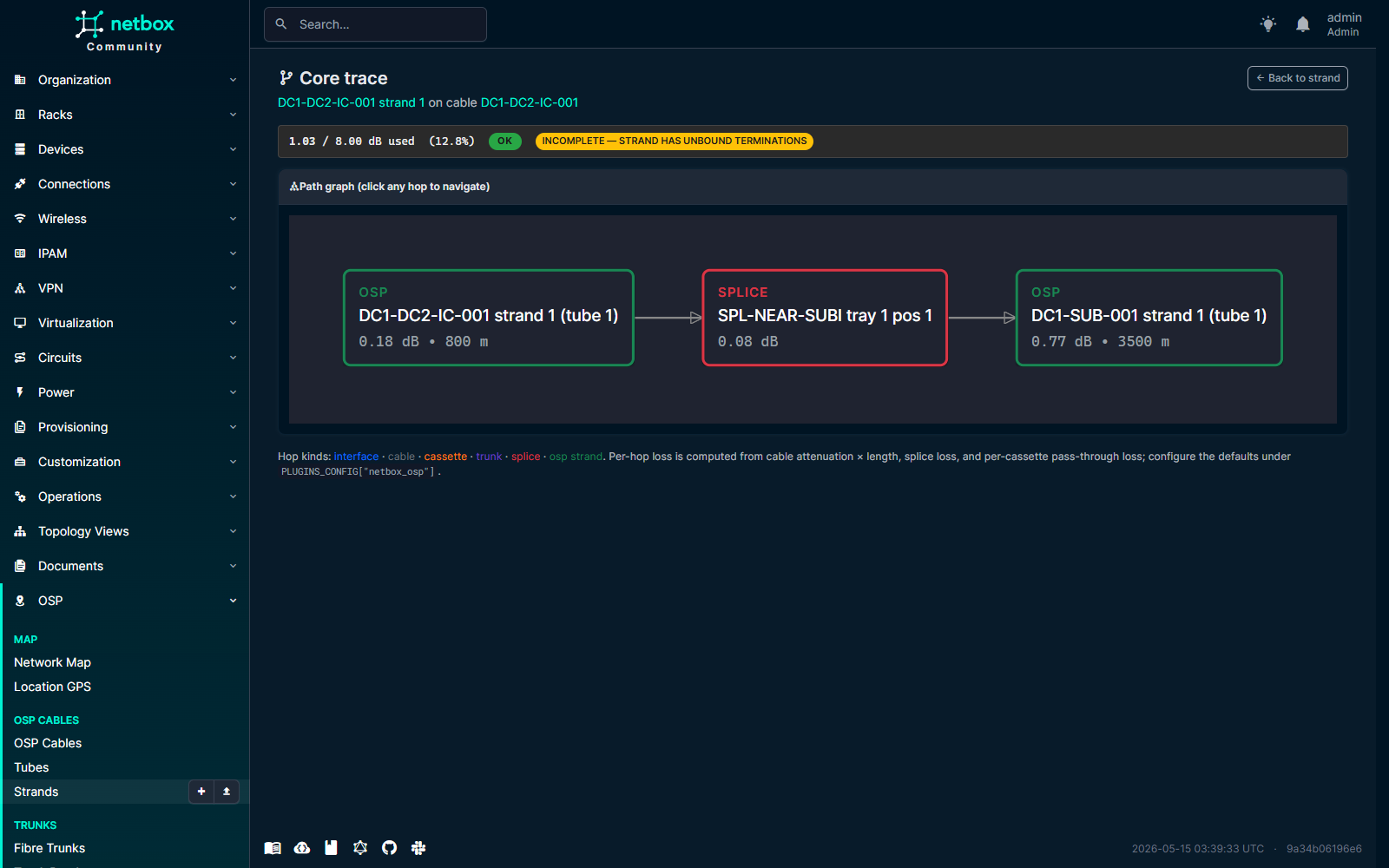

_{Click "Trace this core" on any Strand / FrontPort / Interface. Each hop is clickable; loss budget banded ok/warn/fail above the graph.}

Features

• OSP cable / tube / strand data model — multi-tube armoured cables with TIA-598-C colour-coded tubes and strands. The fibre_count == tube_count * fibres_per_tube invariant is enforced in clean().
• Splice closures, trays, and splices — model dome / inline / pedestal / handhole / wall-mount / aerial closures, with measured per-splice loss and OTDR trace links.
• Fibre-link loss budget — chain strands through splices into an end-to-end logical link. The plugin computes strand attenuation × length + per-splice + per-connector loss, renders an SVG gauge, and bands the result as ok / warn / fail against a configurable target budget.
• Full-screen Leaflet map with seven online base layers (OSM, HOT OSM, CartoDB Positron and Dark Matter, OpenTopoMap, CyclOSM, Esri World Imagery) plus a bundled offline MBTiles layer. The map auto-falls-back to offline after three tile errors in five seconds and remembers the operator's explicit choice across reloads.
• GeoJSON cable-route editor — leaflet-geoman drag-to-edit on cables and closures, sharing the same base-layer machinery as the main map.
• Plant-boundary validation — set a closed polygon in PLUGINS_CONFIG and OspCable.clean() rejects any cable whose route falls outside it. Pure-Python ray-casting, no PostGIS dependency.
• Per-Location GPS markers — LocationGeo is a 1:1 side-table on dcim.Location that adds latitude / longitude / elevation / marker colour, rendered as overlays on the network map and as a panel on the Location detail page.
• REST + GraphQL APIs — full CRUD on every model under /api/plugins/osp/... plus read-only GraphQL types via strawberry-django at NetBox's shared /graphql/ endpoint.
• Bulk import / bulk edit for tubes, strands, splices, trays, closures, and LocationGeo — closes the ~300-click data-entry gap on a 288-strand cable.
• NetBox 4.6+ with a CI matrix covering Python 3.12 and 3.13 on Postgres 17 + Redis 7.

Compatibility

netbox-osp	NetBox	Python	Postgres	Redis	Notes
0.1.x	4.6.x	3.12 · 3.13	17	7	First functional release.

PostGIS is not required — geometry is stored as GeoJSON in JSONField columns and plant-boundary validation uses pure-Python ray-casting. See COMPATIBILITY.md for the full support policy, NetBox / Python / Postgres version policies, and upgrade-path guidance.

Install

From PyPI

The recommended path for production installs:

pip install netbox-osp

Enable the plugin in NetBox's configuration/plugins.py:

PLUGINS = [
    "netbox_osp",
]

Apply migrations and collect static assets:

python manage.py migrate
python manage.py collectstatic --no-input

Restart NetBox and the RQ workers.

From source (development)

git clone https://github.com/iamjohnnymac/netbox-osp.git
cd netbox-osp
pip install -e .

Then follow the same PLUGINS / migrate / collectstatic steps above.

With netbox-docker

Add the plugin to plugin_requirements.txt:

netbox-osp

Enable it in configuration/plugins.py:

PLUGINS = [
    "netbox_osp",
]

PLUGINS_CONFIG = {
    "netbox_osp": {
        "default_attenuation_db_per_km": 0.22,
        "default_splice_loss_db": 0.10,
        "default_connector_loss_db": 0.30,
        "map_default_center": [0.0, 0.0],
        "map_default_zoom": 2,
    },
}

Rebuild and restart the netbox and netbox-worker containers.

See docs/install.md for the complete walk-through.

Configuration

All settings live under PLUGINS_CONFIG["netbox_osp"]:

PLUGINS_CONFIG = {
    "netbox_osp": {
        # Fallback attenuation when an OspCable has no explicit value.
        "default_attenuation_db_per_km": 0.22,

        # Fallback per-splice loss when a Splice has no explicit loss_db.
        "default_splice_loss_db": 0.10,

        # Per-connector loss applied at both ends of every FibreLink.
        "default_connector_loss_db": 0.30,

        # Default Leaflet view as [lat, lon]. Set to your area of interest.
        "map_default_center": [0.0, 0.0],

        # Default Leaflet zoom level. 13-16 is appropriate for site scale.
        "map_default_zoom": 2,

        # Optional closed polygon of [lon, lat] vertices (GeoJSON order).
        # If set, OspCable.clean() rejects any cable whose route falls
        # outside the polygon. Pure-Python ray-casting; no PostGIS needed.
        # "plant_boundary": [
        #     [10.000, 50.000],
        #     [10.010, 50.000],
        #     [10.010, 50.010],
        #     [10.000, 50.010],
        # ],
    },
}

Key	Default	Purpose
default_attenuation_db_per_km	0.22	Fallback attenuation when an OspCable has no explicit value.
default_splice_loss_db	0.10	Fallback per-splice loss when a Splice has no explicit loss_db.
default_connector_loss_db	0.30	Per-connector loss applied at both ends of every FibreLink.
map_default_center	[0.0, 0.0]	[lat, lon] for the default map view.
map_default_zoom	2	Default Leaflet zoom level (13–16 is appropriate for site scale).
plant_boundary	None	Optional closed [lon, lat] polygon. Validates OspCable.route.

See docs/configure.md for deeper docs on plant-boundary validation, per-Location GPS markers, and GraphQL.

Ecosystem integrations

netbox-osp composes with the wider NetBox plugin ecosystem rather than reinventing it. Each integration below is optional — the plugin runs fine without any of them.

• netbox-attachments — attach OTDR .sor traces, splice photos, as-built drawings, and acceptance certificates to any OSP model. Install with pip install netbox-osp[attachments] and add a scope_filter block to PLUGINS_CONFIG.
• Field QR codes — built-in QR panel on SpliceClosure and SpliceTray detail pages encoding the absolute URL. Field crews scan from a printed closure label and land on the splice plan with attached photos. Install with pip install netbox-osp[qrcode]; no PLUGINS_CONFIG changes needed.

See docs/integrations.md for the full configuration snippets, use-case matrix, and verification steps.

Data model

All geometry is stored as GeoJSON in WGS84 with [lon, lat] order (RFC 7946). Conversion to Leaflet's [lat, lon] happens at the JS boundary only.

dcim.Site                                       dcim.Manufacturer
  |  |                                                |
  |  +--< OspCable >-----------< Tube >-----< Strand --+
  |          (route GeoJSON)         |          |
  |                                  +--------- |
  |                                             +--> dcim.Cable
  |                                             |    (Strand.cable_link, optional)
  |                                             |
  +--< SpliceClosure >--< SpliceTray >--< Splice >--+
            (Point)                       (strand_a, strand_b)

  FibreLink >--< FibreLinkStrand >--< Strand
        (loss budget, status)         (ordered hops)

Model	Purpose
OspCable	A physical fibre cable run between two sites. Stores type, attenuation, GeoJSON route, and length.
Tube	A buffer tube inside an OspCable. Unique on (cable, number).
Strand	A single fibre strand. Optional bridge to dcim.Cable via Strand.cable_link for legacy strand-as-cable flows.
SpliceClosure	A physical splice enclosure (dome, pedestal, etc.) sited at a location with optional GeoJSON point.
SpliceTray	A tray inside a closure. Holds individual splices.
Splice	A fusion or mechanical splice joining two strands. Stores measured loss_db and an optional OTDR trace URL.
FibreLink	A logical end-to-end link composed of one or more strands joined by splices, with a configurable loss budget.
FibreLinkStrand	Through-table assigning strands to a FibreLink in ordered hops.
LocationGeo	1:1 side-table on dcim.Location adding latitude / longitude / elevation / marker colour for per-Location pins.

See docs/data-model.md for the field-by-field reference.

API

REST

All endpoints sit under /api/plugins/osp/. Standard NetBox auth (Authorization: Token <key>) and filtering / pagination apply.

Path	Methods	Notes
/api/plugins/osp/cables/	GET / POST / PATCH / DELETE	List + CRUD OspCable
/api/plugins/osp/tubes/	GET / POST / PATCH / DELETE	List + CRUD Tube
/api/plugins/osp/strands/	GET / POST / PATCH / DELETE	List + CRUD Strand
/api/plugins/osp/closures/	GET / POST / PATCH / DELETE	List + CRUD SpliceClosure
/api/plugins/osp/trays/	GET / POST / PATCH / DELETE	List + CRUD SpliceTray
/api/plugins/osp/splices/	GET / POST / PATCH / DELETE	List + CRUD Splice
/api/plugins/osp/links/	GET / POST / PATCH / DELETE	List + CRUD FibreLink
/api/plugins/osp/location-geos/	GET / POST / PATCH / DELETE	List + CRUD LocationGeo

GraphQL

Types are registered with NetBox's shared /graphql/ endpoint and authenticate with the same API token as REST.

{
  osp_cable_list {
    id
    cid
    status
    fibre_count
    length_m
  }
}

The schema is read-only — use REST for writes.

UI endpoints

Path	Purpose
/plugins/osp/map/	Full-screen network map (HTML)
/plugins/osp/map/data/	Map GeoJSON FeatureCollection (filterable)
/plugins/osp/tiles/<z>/<x>/<y>.<ext>	Tile proxy backed by MBTiles

Map tiles

The plant map uses Leaflet with seven public online base layers plus a bundled offline MBTiles layer, and auto-falls-back to offline after three tile-load failures in five seconds. To replace the bundled stub with your own area's imagery, drop one or more .mbtiles files under <MEDIA_ROOT>/osp_tiles/ — they take precedence over the bundled basemap. See docs/tile-bundling.md for the tilemaker-based build workflow.

Development

git clone https://github.com/iamjohnnymac/netbox-osp.git
cd netbox-osp
pip install -e ".[test,docs]"
pre-commit install

Run the lint + format check and the test suite:

pre-commit run --all-files
python -m coverage run -m pytest

Ruff (lint + format) is configured in pyproject.toml to match the wider NetBox plugin ecosystem; the pre-commit hook runs it on every commit.

Roadmap

• Short-term — extend the permission-matrix tests to the remaining seven primary-object view sets, finish debugging the GraphQL osp_<model>_list field surfacing against a live /graphql/ endpoint.
• Medium-term — OTDR trace upload, DWDM channel allocation on FibreLink, QGIS-friendly export of cable routes.
• Long-term — optional PostGIS backend for users who want native spatial indexes, and submission to the NetBox Labs Plugin Certification Program.

Issue tracker for the live picture: https://github.com/iamjohnnymac/netbox-osp/issues.

Contributing

PRs welcome. Please run pre-commit run --all-files and ensure the test suite passes before pushing, and keep new code aligned with the ruff config in pyproject.toml. Substantive changes should add or update tests under netbox_osp/tests/. A formal CONTRIBUTING.md will land alongside the first cert-program submission.

Support

• Bug reports — https://github.com/iamjohnnymac/netbox-osp/issues
• Questions and discussion — https://github.com/iamjohnnymac/netbox-osp/discussions
• Chat — #netbox-plugins on NetDev Slack
