Summary

Releases 8.0.0. Headline feature: entities can be configured with PHP 8 native attributes instead of (or alongside) Doctrine annotations. The release also modernizes the supported platform range, removes long-deprecated subsystems, and rebuilds CI.

#[Grid]
#[ShowAction]
#[Sort(column: 'name', direction: 'ASC')]
class Product
{
    #[Column(label: 'Product Name', sortable: true, searchable: true)]
    private $name;

    #[Column(label: 'Price')]
    private $price;
}

What's in it

Grid configuration

  • #[Grid] / #[Column] native attributes, with #[ShowAction] / #[DeleteAction] / #[Action] / #[Sort] as class-level attributes. On PHP 8.1+ actions and sort can also be nested directly in #[Grid(...)].
  • Annotations remain fully supported. Configuration is merged per property and per marker, so a partially migrated class (some #[Column], some @Column; an @Grid with class-level #[Sort]/#[ShowAction]) keeps all of its columns, actions, and sort.
  • Annotation/attribute classes use natural constructors via Doctrine's @NamedArgumentConstructor; misconfigured values (unknown keys, wrong types, an invalid sort direction) are rejected with a clear error instead of being silently ignored.
  • The resolver is organized behind a GridConfigSourceInterface strategy (attribute + annotation sources), and the on-disk column cache is now a plain var_export'd spec materialized by a single factory (no generated PHP source).

Platform

  • Drop PHP 5.6/7.0/7.1; minimum is now PHP 7.2, tested through 8.4.
  • Add Symfony 7 and 8 support (^3.4 || ^4.4 || ^5.4 || ^6.0 || ^7.0 || ^8.0).
  • Remove the abandoned sensio/framework-extra-bundle dependency.

Removals / cleanup

  • Remove the deprecated-since-3.0.0 dtc:grid:source:generate / dtc:grid:source:list commands, the Dtc\GridBundle\Generator classes, the skeleton templates, and the orphaned ColumnExtractionTrait.

CI

  • Replace Travis with GitHub Actions: PHP 7.2–8.4 matrix (incl. lowest-deps), PHPStan + PHP CS Fixer lint, and an end-to-end Puppeteer screenshot job that posts the rendered grids to this PR.

⚠️ BC breaks (major release)

  • Annotation classes now use @NamedArgumentConstructor: construct them with real parameters (new Column('Name')), not a values array (new Column(['label' => ...])). Misconfigured values (unknown keys, wrong types) now throw instead of being silently ignored.
  • DataTables default integration assets switched from Bootstrap 3 to Bootstrap 4 — override dtc_grid.datatables.css/js if you depend on the old assets.
  • Removed: the dtc:grid:source:* commands and their service IDs, ColumnExtractionTrait, and ColumnSource::setDebug()/setCacheDir().
  • The annotation (non-attribute) path requires the consumer app to provide doctrine/annotations; the native attribute path needs no extra package.

See CHANGELOG.md for the full itemized list.

Test plan

  • Test suite green on PHP 7.2 (incl. --prefer-lowest) through 8.4
  • PHPStan (level 1, baseline) and PHP CS Fixer clean
  • Coverage for the attribute path, annotation path, per-property/partial-migration merge, cache provenance/staleness, argument validation, and the columnless-grid error
  • Screenshot job renders the table and DataTables grids green in CI

🤖 Generated with Claude Code

@mmucklo mmucklo force-pushed the feature/php8-attribute-reader branch from aed4ec4 to dd3c885 Compare April 17, 2026 07:26
@github-actions

github-actions Bot commented Apr 20, 2026

Copy link
Copy Markdown

Grid Screenshots

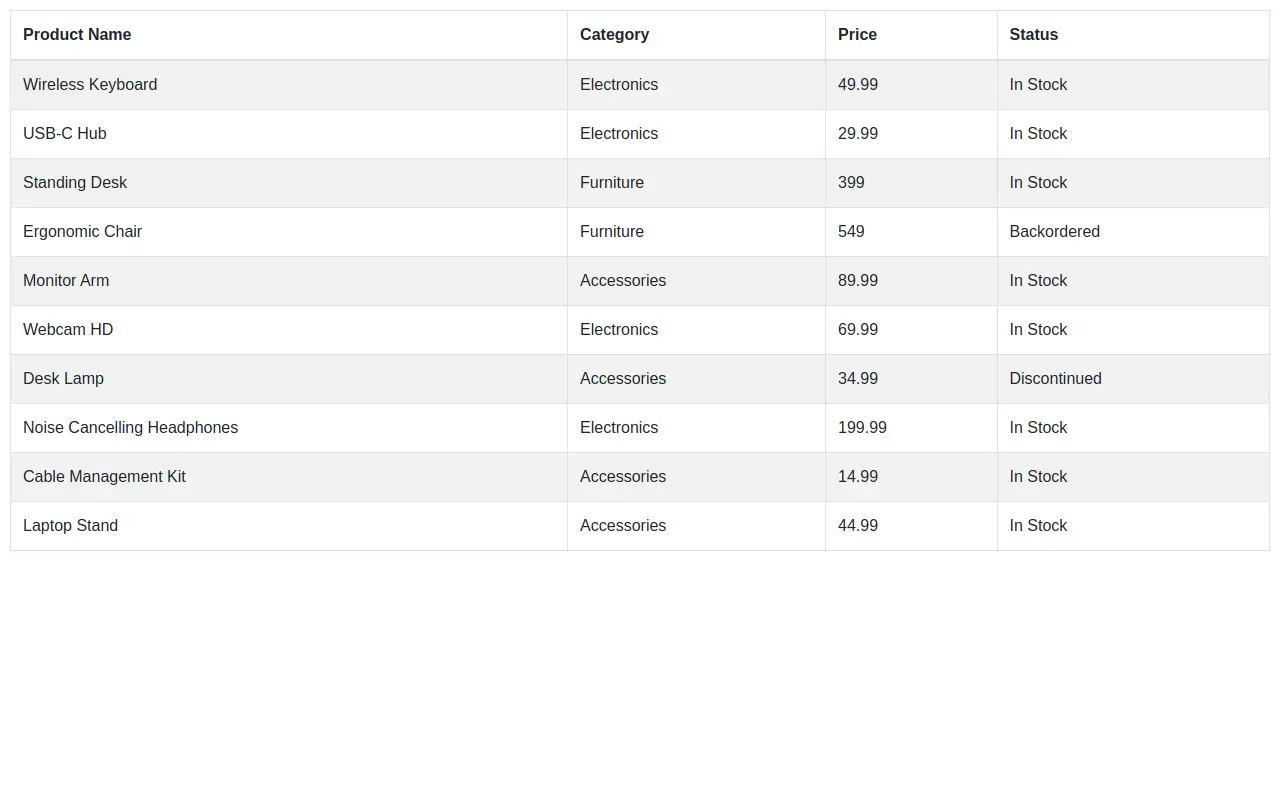

Table renderer:
table

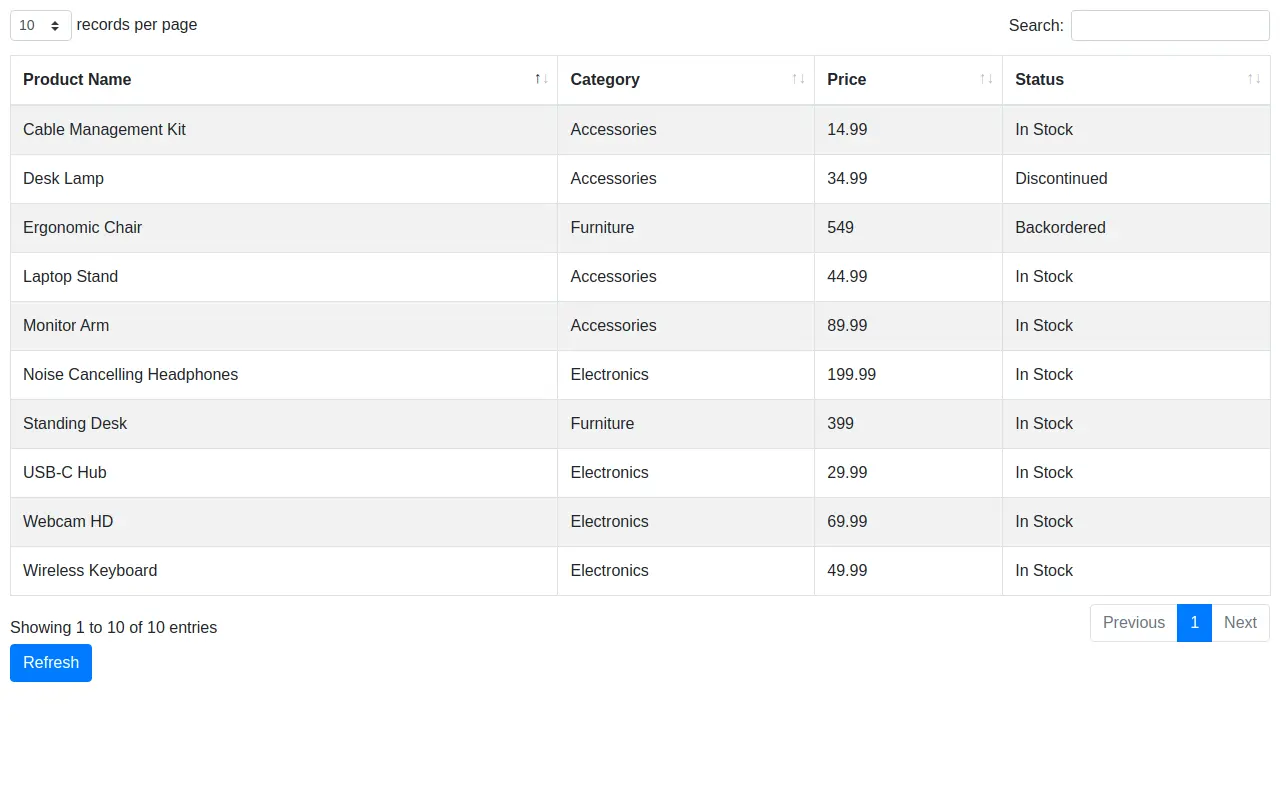

DataTables renderer:
datatables

Auto-generated from CI run

@mmucklo mmucklo force-pushed the feature/php8-attribute-reader branch from 90fc5c4 to bd39e06 Compare April 20, 2026 08:17
mmucklo and others added 4 commits June 8, 2026 21:53
Grid configuration can now be expressed with native PHP 8 attributes
alongside (or instead of) Doctrine annotations:

    #[Grid]
    #[ShowAction]
    #[DeleteAction]
    #[Sort(column: 'name', direction: 'ASC')]
    class Product {
        #[Column(label: 'Name', sortable: true)]
        private $name;
    }

- Annotation classes gain constructors following Symfony's dual pattern:
  a $data array first param (Doctrine annotation reader BC) plus named
  params (PHP 8 attributes). All six are marked #[\Attribute(...)].
- ColumnSource reads #[Grid]/#[Column], plus class-level #[Action]
  (and subclasses via IS_INSTANCEOF) and #[Sort]. Actions/sort can't be
  nested inside #[Grid] because PHP attribute args must be constant
  expressions. Sort is IS_REPEATABLE so multiple #[Sort] map to sortMulti.
- Shared buildColumnInfoFromGrid() backs both annotation and attribute
  paths; attributes are tried first, then annotations, then reflection.
- Tests: constructor instantiation (PHP-7-safe + PHP-8 named-arg suite)
  and an integration test driving getColumnSourceInfo against a fixture,
  asserting columns, action column and sort resolve from attributes.
- phpunit.xml splits a php8 testsuite so PHP-8-only syntax never loads
  on PHP 7.x. README documents attribute usage.

Co-Authored-By: Claude Opus 4.8 (1M context) <noreply@anthropic.com>
A new CI job boots a real Symfony app (FrameworkBundle, TwigBundle,
DoctrineBundle, DtcGridBundle) with a SQLite-backed Product entity
configured via #[Grid]/#[Column], starts the PHP built-in server, and
uses Puppeteer to screenshot the table and DataTables renderers (waiting
for DataTables' AJAX to settle). Screenshots upload as artifacts and,
for same-repo branches, are pushed to an orphan refs/screenshots/<branch>
ref and embedded in a PR comment. Fork PRs skip the write steps.

- Tests/App: minimal kernel, Product entity, YAML config (SQLite ORM),
  front controller (serves static bundle assets directly), DB+fixtures
  setup script.
- Tests/Screenshots/screenshot.mjs: Puppeteer capture script.
- require-dev: doctrine/doctrine-bundle, symfony/yaml (test app only).
- DtcGridBundle::build() gains a : void return type for Symfony 8.
- PHPStan excludes Tests/App and Tests/Screenshots; baseline regenerated.
- .gitignore: node_modules/, Tests/Screenshots/output/.

Co-Authored-By: Claude Opus 4.8 (1M context) <noreply@anthropic.com>
The default config loaded dataTables.bootstrap.min.* (Bootstrap 3) while
the default theme is Bootstrap 4.4.1, so the length selector and search
box rendered beside the grid instead of above it. Switch defaults to
dataTables.bootstrap4.min.{css,js}. Caught by the new screenshot CI.

BC note: override dtc_grid.datatables.css/js to keep the old behavior.

Co-Authored-By: Claude Opus 4.8 (1M context) <noreply@anthropic.com>
Co-Authored-By: Claude Opus 4.8 (1M context) <noreply@anthropic.com>
@mmucklo mmucklo force-pushed the feature/php8-attribute-reader branch from 2ce6c94 to e987b7d Compare June 9, 2026 04:55
mmucklo and others added 15 commits June 8, 2026 22:27
shouldIncludeColumnCache only ran the debug-mode timestamp check when an
annotation reader was present; with no reader it trusted the cache. That
left PHP 8 attribute-only entities (which can be read without an
annotation_reader) serving stale columns in dev until a manual cache
clear. Always re-check timestamps in debug mode regardless of reader.

Co-Authored-By: Claude Opus 4.8 (1M context) <noreply@anthropic.com>
Pin Puppeteer to a fixed version and cache ~/.cache/puppeteer (the
~150 MB Chromium download) keyed on that version, so it isn't
re-downloaded on every run.

Co-Authored-By: Claude Opus 4.8 (1M context) <noreply@anthropic.com>
The screenshot job pushes throwaway refs that were never cleaned up.
Add a workflow that deletes the ref on PR close (same-repo branches only).

Co-Authored-By: Claude Opus 4.8 (1M context) <noreply@anthropic.com>
composer 2.10 blocks security-advisory-affected packages during
dependency resolution, which makes the legacy PHP matrix (7.2-8.0)
unresolvable: older twig/symfony versions get excluded, leaving only
the newest twig which requires PHP 8.1+. These jobs passed on composer
2.9.x; pin to it to restore a resolvable graph for old PHP/Symfony.

Co-Authored-By: Claude Opus 4.8 (1M context) <noreply@anthropic.com>
The previous composer 2.9 pin did not help: both composer 2.9.8 and
2.10 block security-advisory-affected packages during resolution, which
makes the legacy PHP matrix (7.2-8.0) unresolvable (older twig/symfony
excluded, leaving only the newest twig which needs PHP 8.1+).

The real fix is composer's audit config: set block-insecure=false so old
PHP/Symfony combinations can install the (advisory-flagged but expected)
legacy package versions. This only affects this bundle's own dev/CI — a
library's config block is not read by downstream consumers.

Revert the version pin back to composer:v2.

Co-Authored-By: Claude Opus 4.8 (1M context) <noreply@anthropic.com>
--prefer-lowest resolves phpunit to its 8.5.0 floor (kept for PHP 7.2),
which crashes on PHP 8.1+ ("Cannot acquire reference to $GLOBALS"). No
single phpunit constraint satisfies both PHP 7.2 and 8.4 under
prefer-lowest, so lowest-deps is tested on 7.2 only; 8.4 is covered by
8.4/highest. (This combination was previously masked by composer's
advisory blocking excluding the ancient phpunit.)

Co-Authored-By: Claude Opus 4.8 (1M context) <noreply@anthropic.com>
- Remove dtc:grid:source:generate plus the Generator classes and
  skeleton templates (deprecated since 3.0.0). The command relied on
  bundle shortcut notation and Doctrine entity-namespace aliases,
  both removed in modern Symfony/Doctrine; @Grid/#[Grid]
  auto-detection replaced this workflow.
- Remove dtc:grid:source:list (deprecated since 3.0.0). Grid sources
  register lazily per request, so in a console process the list was
  always empty; its duplicate service definition also lacked the
  manager setter and would fatal if it won the name collision.
- Declare GridSourceManager::$entityManager/$documentManager (their
  setters are public API; undeclared assignment is deprecated on
  PHP 8.2+) and drop the write-only $sources property.
- Fix GenerateGridSourceCommand mongodb registry property typo
  (superseded by the removal), drop the dead Reader threading and
  call_user_func_array indirection in ColumnSource cache lookups,
  and prune the corresponding PHPStan baseline entries.

Co-Authored-By: Claude Fable 5 <noreply@anthropic.com>
- Add AnnotationColumnSourceTest: drives getColumnSourceInfo through a
  real Doctrine AnnotationReader against an annotated fixture. The
  annotation path is the bundle's original public API and previously
  had no coverage at all, despite the annotation classes gaining
  constructors in this branch; this guards it across the
  doctrine/annotations ^1.13 || ^2.0 range and PHP 7.2-8.4.
- Add ConfigPrecedenceTest + README note pinning the contract that
  attributes win over annotations when a class carries both.
- Reduce Grid::__construct to the data-array form only. Its named
  params were unreachable: attributes can't pass actions/sort
  (constant-expression rule) and annotations use the array. Keeping
  them invited invalid #[Grid(actions: ...)] usage.
- Fix sortGridColumns comparator to return int (<=>) instead of bool,
  deprecated for uasort since PHP 8.0.
- Document why composer audit.block-insecure is disabled (CI comment).

Co-Authored-By: Claude Fable 5 <noreply@anthropic.com>
The 3.x column refactor (March 2020) moved column extraction into the
ColumnSource service but left ColumnExtractionTrait behind with no
remaining users — 469 lines dead since then.

The trait was also the only reader that understood the "return false"
negative-cache sentinel ColumnUtil::populateCacheFile still wrote for
empty column sets. ColumnSource's stricter reader treats that file as
corruption, so a Grid marker with no Column definitions (and reflection
unavailable) poisoned the cache and failed every request with the
misleading "Bad column cache". Now:

- buildColumnInfoFromGrid throws a clear InvalidArgumentException
  naming the class and the real problem before anything is cached.
- populateCacheFile always writes the full columns/sort structure, so
  an include can never return false.
- ColumnlessGridTest pins the new error on both the attribute (PHP 8)
  and annotation (PHP 7) paths; ColumnUtilTest updated to the new
  cache-file contract.

Co-Authored-By: Claude Fable 5 <noreply@anthropic.com>
Annotation/attribute API (root-cause fixes via @NamedArgumentConstructor):
- Annotation classes now declare natural constructors mapped by Doctrine's
  @NamedArgumentConstructor (supported since annotations 1.12; the bundle
  pins ^1.13). Positional attribute syntax #[Column('Name')] now works
  instead of fataling with an opaque TypeError about an internal $data
  parameter, and direct construction uses real parameters.
- Validation restored and improved: unknown annotation keys throw at the
  DocParser layer on both 1.13 and 2.x, and the constructors type-check
  values (e.g. sortable="false" throws instead of silently becoming a
  truthy string). Grid validates and normalizes actions/sort/sortMulti,
  so @grid(actions=@ShowAction) (no braces) and array-literal attribute
  data can no longer flow garbage into the column cache.
- Nested actions/sort inside #[Grid] now work on PHP 8.1+ (the old
  "constant expressions" rationale predates new-in-initializers); the
  separate class-level attribute form remains for PHP 8.0. Comments,
  README and CHANGELOG updated to match.

ColumnSource resolver (regression + behavior fixes):
- Half-migrated classes work again in both directions: #[Grid] with
  @column docblock columns (which regressed to a 500/wrong columns) and
  @grid with #[Column] properties. Each reader falls back to the other
  source's column definitions when it finds a marker but no columns.
- The columnless-grid error moved from the reader to the end of the
  resolver chain, after attributes, annotations, cache and reflection
  have all been consulted.
- In debug mode, a stale cache for a class with no Grid marker (YAML
  grids cached at container compile time) is served rather than being
  silently replaced by reflection columns after an entity edit.
- Cached sort lists are now validated with the correct shape
  (column => direction map); the old call misread the map and could
  throw on a column literally named "column" while validating nothing
  for everyone else.
- Built column info is returned in-memory (cache write is a side
  effect), removing the write-then-re-include roundtrip; dead members
  ($cachedSort, setDebug, setCacheDir) removed; duplicated reader tails
  and property-collection loops hoisted into shared helpers.

CI/workflows:
- Screenshot refs are archived (refs/screenshots/closed/pr-N) on PR
  close instead of deleted, so images in merged PRs' comments survive
  garbage collection; the screenshot SHA is passed between steps via
  step output instead of implicit HEAD state; comment lookup paginates
  past 30 comments; Puppeteer browser/npm cache saves even on job
  failure; the screenshots job gained the composer cache the tests job
  already had.

Tests: shared ColumnSourceTestCase base (removes ~60 duplicated lines),
plus regression tests for half-migration (both directions), annotation
validation, stale-cache fallback, and PHP 8.1 nested attributes. Dead
autoDiscoverColumns references removed from five doc files.

Co-Authored-By: Claude Fable 5 <noreply@anthropic.com>
doctrine/annotations 1.13.3+/2.x wrap annotation-constructor throws in
AnnotationException; 1.13.0 (the lowest-deps floor) propagates them raw.
Assert the contract (loud failure, clear message) rather than the
wrapper class.

Co-Authored-By: Claude Fable 5 <noreply@anthropic.com>
Restructure the ColumnSource resolver so config-source composition lives
in the orchestrator instead of inside each reader, which root-fixes three
regressions in the previous round's fallback logic:

- Columns merge per-property (collectColumns walks properties once,
  attribute winning per property), so a property-by-property migration no
  longer silently drops the unconverted columns.
- Class-level #[Action]/#[Sort] attributes merge into a Grid marker from
  either source (collectGrid), so an @grid annotation class migrating its
  actions/sort to attributes no longer loses them.
- Cache files carry a 'source' marker ('compile' for dtc_grid YAML built
  at container compile, 'runtime' for request-time reads). The
  timestamp-stale fallback only resurrects 'compile' caches, so a removed
  annotation/attribute Grid marker now takes effect instead of the stale
  runtime cache rendering deleted config forever.

Also:
- An empty-column cache is treated as a miss, not a silent zero-column
  grid; the no-columns configuration error moved into buildColumnInfoFromGrid
  (before the action column is added) so an actions-only grid can't mask it.
- ColumnUtil::populateCacheFile var_export()s keys (user-controlled YAML
  column names with an apostrophe previously produced an unparseable cache)
  and writes atomically via tempnam+rename so a concurrent request can't
  include() a half-written file.
- phpunit.xml gains defaultTestSuite="default" so a bare `bin/phpunit` on
  PHP 7.x no longer loads the PHP-8-only suite and fatals on parse.
- CI: drop always() from the Puppeteer cache save (it could persist a
  partial download under the immutable key); poll for the dev server
  instead of a fixed sleep; archive screenshot refs via FETCH_HEAD.

Cleanups: gridConfigured flag removed; instantiateColumnInfo moved to
ColumnUtil beside the cache writer; validateSortList delegates to
validateSortInfo; Grid normalize/describe helpers collapse the duplicated
actions/sortMulti validation; checkTimestamps made private; a single
TempDir::remove replaces three recursive-delete copies. CHANGELOG notes
the setDebug/setCacheDir removal; README documents per-property merge.

Regression tests added for each fixed behavior.

Co-Authored-By: Claude Fable 5 <noreply@anthropic.com>
BC-1: restore ColumnSource::checkTimestamps() to public static. It was
public static and advertised since 3.3.0 ("expose compiler-pass logic as
a static method"); privatizing it was an undocumented break.

BC-2: getCachedColumnInfo treats any non-current-format cache file as a
miss (rebuild) instead of fataling — covers a pre-8.0 `return false`
sentinel, a corrupt/partial file, and any cache predating the 'source'
key. Removes the "Bad column cache" exceptions in favor of self-healing.

#1 (validation consistency): add a shared ValidatesArguments trait and
apply it across Column/Action/Sort/Grid so every grid annotation enforces
its argument types the same way. Sort now rejects a non-ASC/DESC
direction and Action a non-string label/route/etc. at the config boundary
(previously only Column validated; Action/Sort passed bad values through).

#2 (cache mechanism): stop generating PHP source. populateCacheFile now
var_export()s the column *spec* array (class + arguments), materialized on
read by the single instantiateColumnInfo() factory. This removes the
hand-written codegen, the dual materialization the spec required, and the
manual key-escaping (var_export handles it).

#3 (docs): README calltout for the PHP 8.0-vs-8.1 attribute syntax
difference. CHANGELOG documents the removed dtc_grid.command.* service IDs
and the doctrine/annotations soft-dependency; composer.json gains a
suggest entry for it.

Regression tests: Sort/Action validation, and legacy/source-less/corrupt
caches treated as a miss.

Co-Authored-By: Claude Fable 5 <noreply@anthropic.com>
Replace the inline attribute/annotation reading in ColumnSource
(collectGrid/collectColumns with their PHP_VERSION_ID branches) with a
GridConfigSourceInterface and two implementations: AttributeConfigSource
(PHP 8 ReflectionAttribute) and AnnotationConfigSource (Doctrine reader).

getColumnSourceInfo now builds the source list (attributes first, then
annotations) and resolveGridConfig composes them: the Grid marker comes
from the highest-precedence source that has one; class-level actions/sort
are filled from the highest-precedence source declaring them separately;
columns merge per property in declaration order. The precedence/merge
rules — previously spread across two methods and the orchestrator — now
live in one documented place, and adding a future config source is
implementing the interface rather than threading new branches through the
resolver. The ReflectionAttribute API reference also moves out of the
always-loaded ColumnSource into the PHP-8-only source.

Behavior is unchanged; all existing resolver tests (precedence, both
half-migration directions, annotation-grid-borrows-attribute-actions)
pass as-is.

Co-Authored-By: Claude Fable 5 <noreply@anthropic.com>
Key the screenshot ref by PR number (refs/screenshots/pr-<N>) instead of
branch name and force-push it each run, so each PR keeps exactly one
current set of screenshots. Because the ref is keyed by PR and never
deleted, the merged PR's comment images keep working with no separate
archive-on-close workflow — cleanup-screenshots.yml is removed. The ref
still lives under refs/screenshots/*, which `git clone` does not fetch,
so none of this touches consumer clones.

Capture as WebP q75 instead of lossless PNG: ~20KB/set vs ~130KB, still
rendered inline by GitHub. The push step is now gated to same-repo PRs
(a default-branch push has no PR comment to attach images to).

Co-Authored-By: Claude Fable 5 <noreply@anthropic.com>
@mmucklo mmucklo changed the title PHP 8 native attribute support for grid configuration 8.0.0: PHP 8 attribute grid config, Symfony 7/8 support, and legacy cleanup Jun 21, 2026
mmucklo and others added 2 commits June 21, 2026 19:04
- Column formatter was wrongly type-validated as a string. It is a
  callable (invoked via call_user_func), which may be a string OR an
  array (['Class','method']) — both valid in annotations and attributes.
  The string assertion (added with the validation trait this cycle)
  rejected array callables; drop it. Regression test added.

- An explicit empty actions list (#[Grid(actions: [])] / @grid(actions={}))
  built a stray, empty action column because buildColumnInfoFromGrid used
  isset($actions) — true for an empty array. Use a truthy check so empty
  actions behaves like no actions. Pre-existing; the masking phpstan
  baseline entry ("$actions in isset() always exists") is removed, since
  it was hiding exactly this smell. Regression test added.

Co-Authored-By: Claude Fable 5 <noreply@anthropic.com>
The Sort constructor's assertOneOf(direction) duplicated the direction
check that ColumnSource::validateSortInfo already performs at build time —
and threw first, with a context-free message, so an invalid #[Sort]
direction surfaced as '"direction" must be one of ASC, DESC' with no hint
which entity was misconfigured. Remove the constructor validation (and the
now-unused trait) so sort validation happens once, in the resolver, where
the column list and entity class name are available; the error now reads
'<Entity> - Grid's sort annotation direction "UP" is invalid'.

Replace the constructor-throws unit test with a resolver-level test
asserting the entity-qualified message.

Co-Authored-By: Claude Fable 5 <noreply@anthropic.com>
Sign up for free to join this conversation on GitHub. Already have an account? Sign in to comment

Labels

None yet

Projects

None yet

Development

Successfully merging this pull request may close these issues.

1 participant
