protoVoice

Sub-200ms real-time voice agent. Speak and get spoken responses faster than human conversational turn-taking.

Mic → [Silero VAD] → [Whisper Turbo] → [Qwen 4B] → [Kokoro TTS] → Speaker
        ~1ms             ~55ms            ~150ms        ~50ms

165ms time-to-first-audio. 210ms end-to-end. Zero cold start.

Quick Start

# Docker (single GPU, downloads ~12GB of models on first run)
docker compose up -d

# Or native
pip install -e .
python app.py

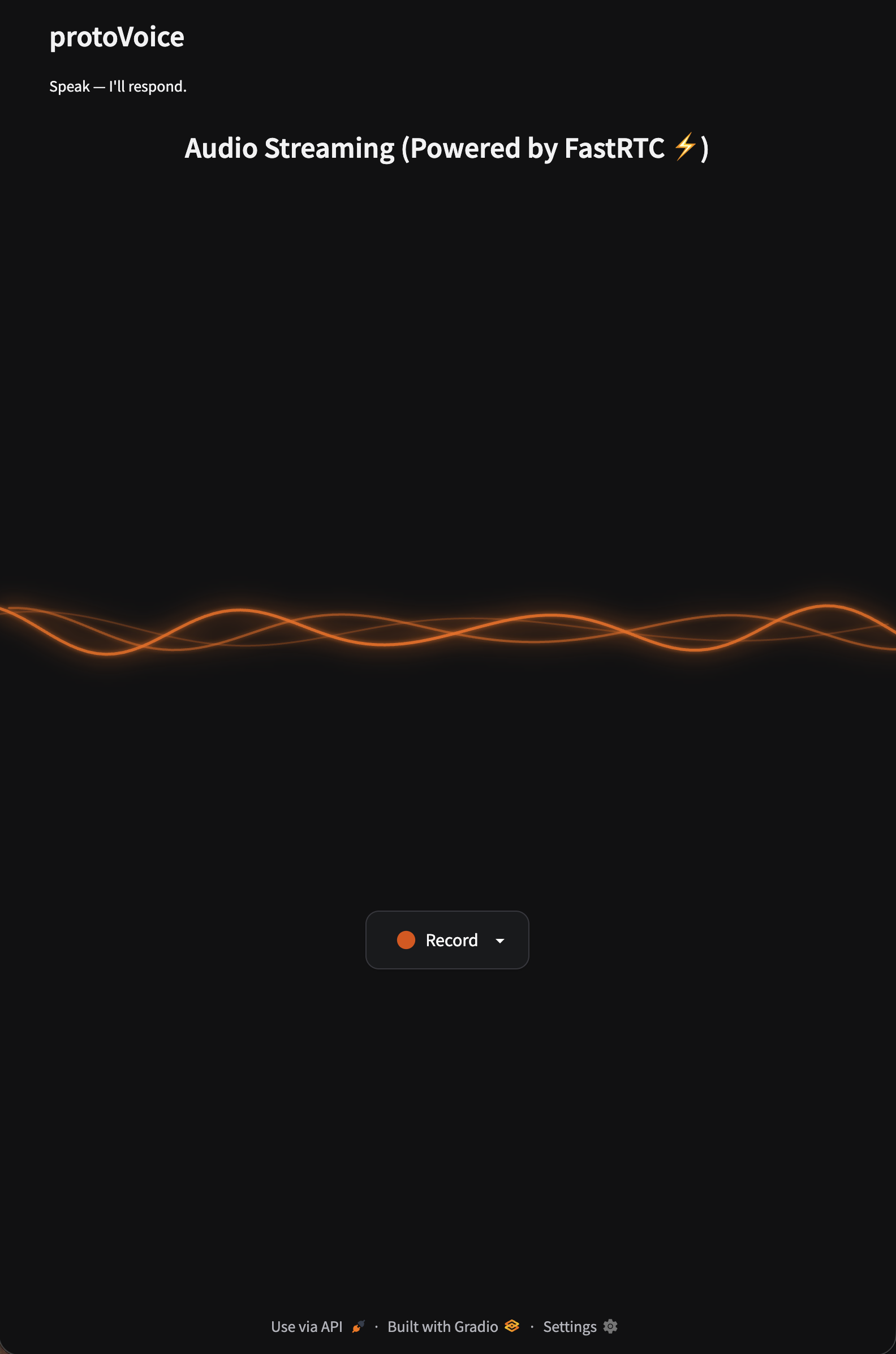

UI at http://localhost:7866. For remote access with mic (HTTPS required), use a reverse proxy or tailscale funnel 7866.

How It Works

1. Silero VAD detects when you stop speaking (~1ms, CPU)
2. Whisper large-v3-turbo transcribes your speech (~55ms on GPU)
3. Qwen3.5-4B streams a response token-by-token (~150ms to first clause)
4. Sentence chunker detects boundaries in the token stream
5. Kokoro 82M synthesizes each chunk immediately (~50ms per chunk)
6. Audio plays before the LLM finishes generating

All models pre-warmed on startup (~5s boot). No cold start penalty.

Benchmarks

Measured on NVIDIA RTX PRO 6000 Blackwell (96GB):

Metric	Value
Time to first audio (TTFA)	165ms avg (150-180ms)
Total end-to-end	210ms avg (190-230ms)
STT (Whisper large-v3-turbo)	55ms
LLM (Qwen3.5-4B, streaming)	150ms
TTS (Kokoro 82M, chunked)	50ms/chunk
Cold start (first turn)	0ms (pre-warmed)

165ms TTFA is faster than human conversational turn-taking (~300ms).

Features

• Streaming pipeline: LLM tokens stream through a sentence chunker to TTS — audio plays while the LLM is still generating
• Interruption: Start speaking mid-response and it stops, listens, responds to the new input
• Context memory: Sliding window of 10 turns with automatic summarization of older context
• Self-contained: Built-in vLLM server for the LLM, or connect to an external one
• Auth: Optional login protection via GRADIO_AUTH

Configuration

Variable	Default	Description
PORT	7866	Web UI port
LLM_MODEL	Qwen/Qwen3.5-4B	LLM model (any vLLM-compatible)
WHISPER_MODEL	openai/whisper-large-v3-turbo	STT model
KOKORO_VOICE	af_heart	TTS voice (54 options)
KOKORO_LANG	a	Language (a=American, b=British, j=Japanese, etc.)
SYSTEM_PROMPT	(conversational assistant)	LLM system prompt
GRADIO_AUTH	(none)	Login auth, format: user:pass,user2:pass2
START_VLLM	1	Set 0 to use external LLM
LLM_URL	http://localhost:8100/v1	External LLM endpoint (when START_VLLM=0)
HF_HOME	/models	HuggingFace cache directory
NVIDIA_VISIBLE_DEVICES	0	GPU to use

GPU Memory Budget (single GPU)

Component	VRAM
Whisper large-v3-turbo	~6 GB
Qwen3.5-4B (vLLM, 40% util)	~15 GB
Kokoro 82M	~2 GB
Total	~23 GB

Fits on any GPU with 24GB+ VRAM. On larger GPUs, increase --gpu-memory-utilization for more KV cache (longer conversations, higher concurrency).

Using an External LLM

To use a larger/faster LLM running elsewhere:

START_VLLM=0 LLM_URL=http://your-vllm-host:8000/v1 python app.py

This skips the built-in vLLM and connects to your existing endpoint. Works with any OpenAI-compatible API.

Architecture

                    ┌─────────────────────────────────┐
                    │          protoVoice              │
                    │                                  │
  Mic (WebRTC) ───►│  Silero VAD                      │
                    │      │                           │
                    │      ▼                           │
                    │  Whisper STT (GPU)               │
                    │      │                           │
                    │      ▼                           │
                    │  Qwen 4B via vLLM ──► streaming  │
                    │      │                  tokens   │
                    │      ▼                           │
                    │  Sentence Chunker                │
                    │      │                           │
                    │      ▼                           │
                    │  Kokoro TTS (GPU) ──► audio      │
                    │      │                chunks     │
  Speaker ◄────────│──────┘                           │
    (WebRTC)       │                                  │
                    └─────────────────────────────────┘

License

MIT
