NeuroGravity

Code repository of "Transferable Human Mobility Network Reconstruction with neuroGravity, 2025."

NeuroGravity is a physics-informed deep learning model that combines the gravity model's interpretability with Graph neural networks' adaptability. NeuroGravity generates robust mobility flow estimates from limited observations and can be transferred to cities without observation.

---

Table of Contents

• Tasks and Challanges
• Repository Contents
• Getting Started
  • Environment Prerequisites
  • Quick Reconstruction & Transfer Tests
  • Generate More Mobility Networks by NeuroGravity
• NeuroGravity Estimated Mobility Networks
• Collaborators

Note on Data Preprocessing & Reproducibility: The computational pipeline for preprocessing raw Call Detail Records (CDRs) to generate the training data is not included in this repository. Please refer to repository sparkmobility if you posses raw CDR records and wish to construct the OD matrix from scratch.

Tasks and Challanges

In most undeveloped regions, the absence of comprehensive travel surveys or mobility data triggers a long-standing need to reconstruct human mobility networks from limited data.

• Reconstruct Mobility Network from Partial Observation.
  • Completely random observation (mask_mode=0)
  • Observation from/to partial nodes (mask_mode=1)
  • Internal observation (mask_mode=2)

We aim at tackling extreme data-scarce scenarios such that only the internal flows from 10% of regions (accouting for less than 1% of total regions pairs) are observed.

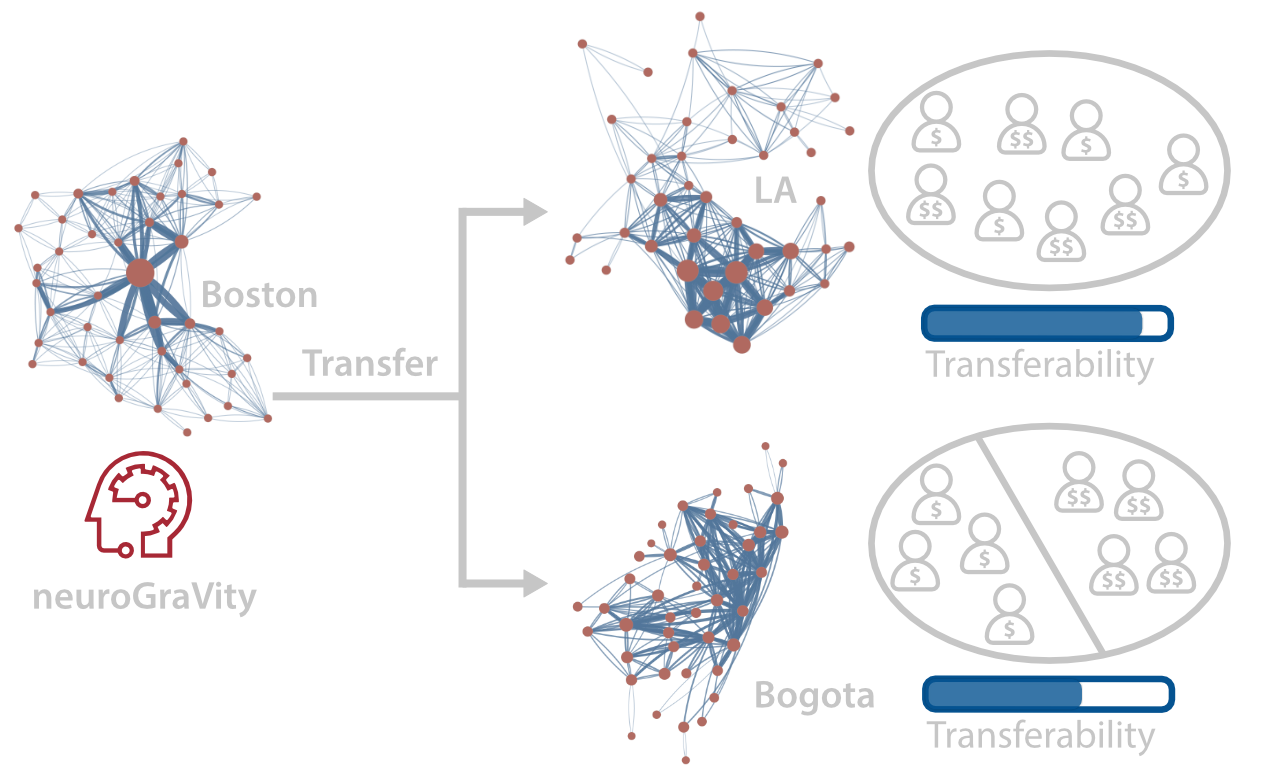

• Cross-City Mobility Flow Generation.
  • To ensure applicability, we only use widely available data as model inputs, namely: population, bult-environment features, and distance.
  • The spatial segregation of income would block mobility flows and impact the cross-city flow generation accuracy. Cities with relatively minor spatial income segregation like Boston are normally better choices as source to train flow reconstruction models.

Leveraging the outstanding generalizability of neuroGravity, we reconstructed human mobility networks for over 1,200 cities on a global scale.

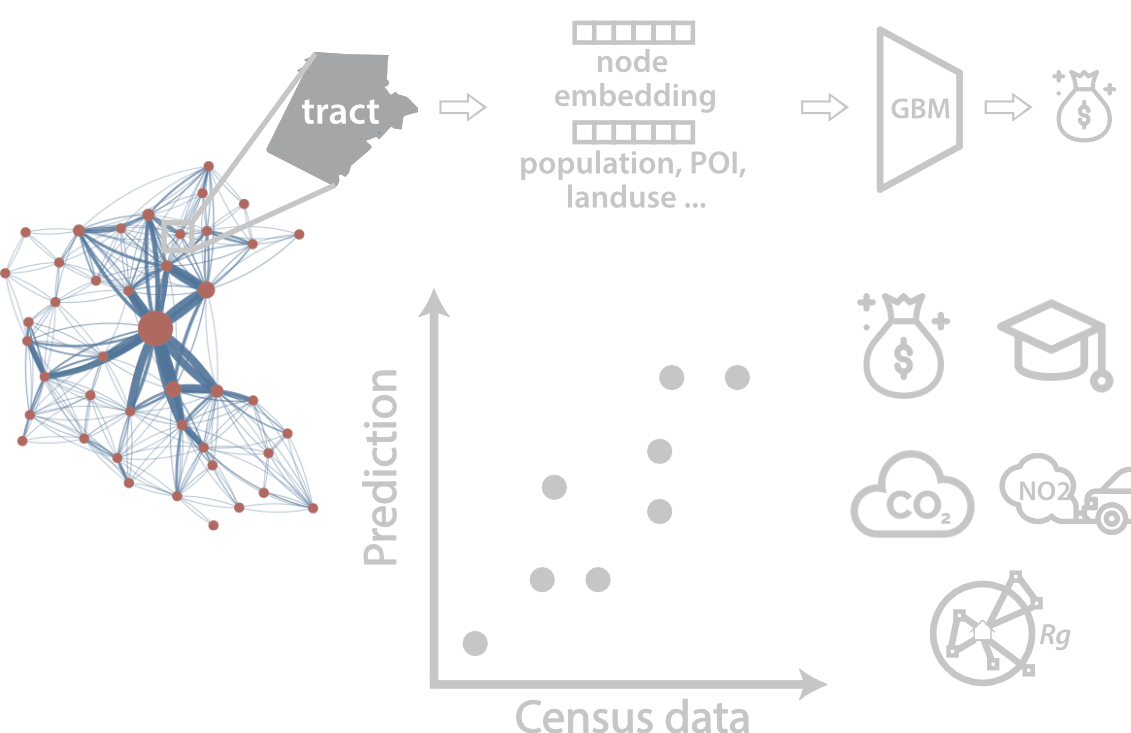

• Estimate Regional Socio-economic and Livability Indicators
  • Node embeddings extracted by neuroGravity during flow reconstruction can help predict regional attributes such as household income, education attainment, household carbon footprint, nitrogen dioxide concentration, and radius of gyration.

---

Repository Contents

This repository contains:

• Codebase of neuroGravity: Implementation of neuroGravity, including training, reconstruction, and cross-city generation scripts.
• Trained neuroGravity checkpoints: 20 neuroGravity checkpoints independently trained from sub-sampled Boston mobility network, along with a trained connection predictor, ready to be applied to generate flows on other cities.
• Scripts for Data Preparation: Scripts to prepare OSM feature & population data for neuroGravity inference.
• Socio-economic Inference: Jupyter notebook for socio-economic inference cross-validation.
• Spatial Income Segregation Index: Python code for calculating the spatial income segregation index
• Sample Data:
  • Sample data for mobility flow reconstruction & transfer (Since the CDR/LBS data is proprietary, we only provid neuroGravity-generated synthetic flow data here to demonstrate how to use the neuroGravity model).
  • Sample data for socio-economic inference (Boston).
• Baseline Models:

Baseline Model	Description
Gravity model	Erlander, Sven, and Neil F. Stewart. The gravity model in transportation analysis: theory and extensions. Vol. 3. Vsp, 1990.
meta-Gravity	The deep-parameterized Gravity model, referred to as meta-Gravity, is tested independently as a baseline.
Deep Gravity	Simini, Filippo, Gianni Barlacchi, Massimilano Luca, and Luca Pappalardo. "A deep gravity model for mobility flows generation." Nature communications 12, no. 1 (2021): 6576.
GNN Model	Zhang, Jiawei, Haopeng Zhang, Congying Xia, and Li Sun. "Graph-bert: Only attention is needed for learning graph representations." arXiv preprint arXiv:2001.05140 (2020).

---

Getting Started

Environment Prerequisites

• Python 3.8 or higher

• Required libraries: See requirements.txt

• Installation guidance: Installing directly from requirements.txt may cause unexpected issues due to version conflicts. It is recommended to install the required libraries individually:

  • PyTorch: Follow the instructions at PyTorch Installation
  • PyTorch Geometric (PYG): Follow the instructions at PYG Installation

Quick Test Using Provided Synthetic Data (generated by neuroGravity trained in Boston)

Note that the CDR data is proprietary, we only provid neuroGravity-generated synthetic flow data here to demoonstrate how to run the code.

• Reconstruct PORTO mobility network with internal flow observation from 10% regions (along with baseline models)

python main.py reconstruction

Expected Runtime < 5 minutes (with GPU acceleration). Output Directory: ./data/PORTO/experiments/reconstruction_porto/. Key output files: flow estimates {models}_reconstruction_test_outputs.csv along with checkpoints and logs (evaluation metrics).

• Train neuroGravity ensemble model in Boston and generate PORTO mobility network (along with baseline models)

python main.py train_transfer

Expected Runtime < 10 minutes (with GPU acceleration). Output Directory: ./data/BOSTON/experiments/train_and_transfer_from_boston_to_porto/. Key output files: flow estimates {models}_estimation_in_PORTO.csv along with checkpoints and logs (evaluation metrics).

The reconstruction and transfer specifications direct the code to load the corresponding subparsers from ./data/reconstruction_subparser.py and ./data/train_and_transfer_subparser.py, respectively.

Generate Mobility Network for More Cities with Trained neuroGravity from Boston

1. Prepare and process division boundary, OSM feature, population data for the target cities following codes in ./data_preparation/:

   • Generate target city list along with paths to essential data by ./data_preparation/0_city_list_prepare.ipynb
   • Process and save target city data by ./data_preparation/1_paralleled_prepare_with_memory_monitor.py
   • Essential data required for mobility network generation:
     • OSM and population profile: attr_df.csv
     • Administrative division boundary (polygon) geojson: {CITY_NAME}.geojson
     • OD pair distance (Km) and flow (if the ground truth label is available): distance(_and_flow).csv

     Note that the order of administrative divisions in attr_df.csv is consistent with that in {CITY_NAME}.geojson, and their indices (starting from 0) correspond to the O and D identifiers in distance.csv.

2. Prepare targets json file that specify the target city name and path.

3. [Optional] Modify the default path for the transfer_targets argument in ./data/transfer_subparser.py if you assigned a new name or path for your new targets json file in step 2.

4. Execute the following command and check the target data folder for flow estimation.

python main.py transfer

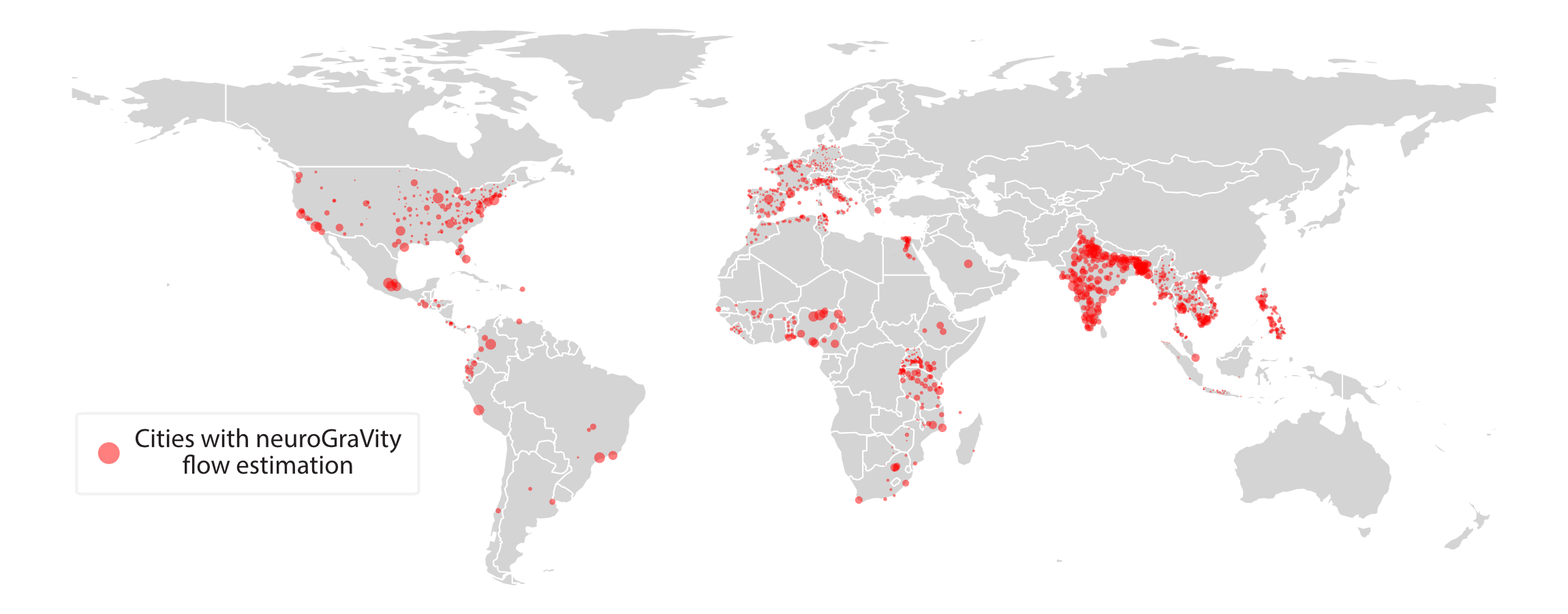

neuroGravity Estimated Mobility Networks in over 1200 Cities/Regions

Leveraging the generalizability of neuroGravity, we applied the assembling neuroGravity model trained on the data-abundant city Boston to generate mobility flows for over 1,200 cities and regions on a global scale. We released the estimated flows along with the OSM features and administrative divisions in neuroGravity Mobility Netowrk Estimations.

Collaborators

Jinming Yang

Shaoyu Huang

Zongyuan Huang

Supervisors

Yanyan Xu

Marta C. González
