⚡ ccstatuswidgets

A customizable, plugin-ready status line for Claude Code CLI

model · tokens · git · weather · stocks · cricket · flights · pomodoro · and more

23 built-in widgets · plugin system · single Go binary

---

📚 Table of Contents

• Features
• Quick Start
• Built-in Widgets
• Configuration
• Managing Widgets
• CLI Commands
• Plugin System
• Creating Plugins (full guide)
• Development
• License

---

✨ Features

• 📊 23 Built-in Widgets — model, tokens, git status, weather, stocks, cricket scores, moon phase, and more
• ⚡ Fast — Go binary with concurrent widget execution, renders in <10ms for built-in widgets
• 🔌 Plugin System — extend with community plugins via simple shell/Python scripts
• 🎯 CLI Management — ccw add, ccw remove, ccw list to manage widgets without editing JSON
• 📐 Multi-line Layout — arrange widgets across multiple status lines, any order
• 🔄 Cache Fallback — slow widgets (HTTP/git) fall back to cached results, per-widget TTL
• 🍅 Pomodoro Timer — built-in work/break timer with ccw pomo commands
• 🌍 Cross-platform — macOS and Linux, no external dependencies

---

🚀 Quick Start

Install

curl -sSL https://raw.githubusercontent.com/warunacds/ccstatuswidgets/main/install.sh | sh
ccw init

That's it. Start Claude Code and the status line appears automatically.

What ccw init does

1. Creates ~/.ccstatuswidgets/ with default config
2. Patches ~/.claude/settings.json to point statusLine.command to ccw
3. Sets up cache and plugin directories

Updating

Re-run the install script — your config is preserved, only the binary is replaced:

curl -sSL https://raw.githubusercontent.com/warunacds/ccstatuswidgets/main/install.sh | sh

Install from source

git clone https://github.com/warunacds/ccstatuswidgets.git
cd ccstatuswidgets
go build -ldflags "-s -w -X github.com/warunacds/ccstatuswidgets/internal/cli.Version=$(git describe --tags)" -o ccw ./cmd/ccw
sudo cp ccw /usr/local/bin/ccw
ccw init

---

📊 Built-in Widgets

Core Widgets

Widget	Output	Description
model	Opus 4.6	Current model display name
effort	(high)	Effort level from Claude settings
directory	myproject	Basename of working directory
git-branch	(main)	Current git branch
git-status	✓ or ✎ 3M 2U	Working tree status (modified/untracked/added/deleted)
git-diff	staged: 4 files	Staged changes count
tokens	↑12.4k ↓8.2k	Input/output token counts
total-tokens	20.6k tokens	Combined token count
session-time	⏱ 1h23m	Elapsed session time
context-bar	ctx ████░░░░░░ 35%	Context window usage bar
usage-5h	5h ██░░░░░░░░ 22% -8% ↻2h30m	5-hour rate limit with pace tracking
usage-7d	7d █░░░░░░░░░ 8% -21% ↻3d1h	7-day rate limit with pace tracking
lines-changed	+342 -87	Lines added (green) / removed (red)
cost	api eq. $1.47	Session cost (detects Max plan)
memory	542MB	Parent process memory

Fun Widgets

Widget	Output	Description	Needs API Key?
weather	🌤 +33°C	Current weather via wttr.in	No
now-playing	♪ Song - Artist	Currently playing track (macOS + Linux)	No
hackernews	HN: Story Title	Top Hacker News story	No
moon	🌒 waxing crescent	Current moon phase	No
stocks	AAPL +1.2% TSLA -3.1%	Stock price changes	No
pomodoro	🍅 18:42 / ☕ 3:21	Pomodoro work/break timer	No
flight	✈ UL504 ⬆ active	Live flight tracking	Yes (AviationStack)
cricket	🏏 SL 245/3 (42.1)	Live cricket scores via ESPN	No

Bar widgets change color based on usage: 🟢 green (<50%), 🟡 yellow (50–79%), 🔴 red (80%+)

---

⚙️ Configuration

Config lives at ~/.ccstatuswidgets/config.json:

{
  "timeout_ms": 500,
  "lines": [
    { "widgets": ["model", "effort", "directory", "git-branch", "context-bar", "tokens", "session-time", "usage-5h", "usage-7d"] },
    { "widgets": ["lines-changed", "git-status", "cost", "memory"] }
  ],
  "widgets": {
    "context-bar": { "bar_length": 10, "show_percentage": true },
    "usage-5h":    { "bar_length": 10, "show_percentage": true, "show_pace": true },
    "usage-7d":    { "bar_length": 10, "show_percentage": true, "show_pace": true },
    "weather":     { "city": "Colombo", "units": "metric" },
    "stocks":      { "symbols": ["AAPL", "TSLA"] },
    "pomodoro":    { "work_mins": 25, "break_mins": 5 }
  }
}

Option	Description
timeout_ms	Max time (ms) to wait for widgets before cache fallback. Default: 500
lines	Array of line configs. Each line lists widget names in display order
widgets	Per-widget settings. Keys match widget names

Styling

Customize colors and formatting per widget:

{
  "separator": " │ ",
  "powerline": false,
  "widgets": {
    "model": { "fg": "#ff79c6", "bg": "#282a36", "bold": true },
    "directory": { "fg": "#8be9fd", "italic": true },
    "git-branch": { "fg": "#50fa7b" },
    "cost": { "fg": "196" }
  }
}

Field	Description	Example
fg	Foreground color	"red", "196", "#ff6b6b"
bg	Background color	"blue", "#282a36"
bold	Bold text	true
dim	Dim/faint text	true
italic	Italic text	true
underline	Underline text	true
separator	Widget separator (top-level)	" │ ", " · ", " "
powerline	Powerline arrow mode (top-level)	true — requires Nerd Font

Color formats: named (red, green, etc.), 256-color (196), or hex truecolor (#ff6b6b)

Powerline mode: When enabled, widgets render with background colors and arrow separators (``). Install a Nerd Font for best results.

Use ccw configure to set colors interactively — press c for foreground, B for background, f for formatting, / for separator, p for powerline toggle.

Widget-specific config

Weather

"weather": { "city": "Colombo", "units": "metric" }

• city — city name (default: IP geolocation)
• units — "metric" or "imperial"

Stocks

"stocks": { "symbols": ["AAPL", "TSLA", "GOOG"] }

• symbols — array of stock ticker symbols

Flight

Supports two providers — choose one:

Option 1: AviationStack (default) — aviationstack.com, 500 requests/month free

"flight": { "api_key": "your_key", "flight": "UL504" }

Option 2: AeroDataBox via RapidAPI — rapidapi.com/aedbx, more generous free tier

"flight": { "api_key": "your_rapidapi_key", "flight": "UL504", "provider": "aerodatabox" }

• api_key — API key for your chosen provider
• flight — IATA flight number (e.g., UL504, QF1, BA256)
• provider — "aviationstack" (default) or "aerodatabox"

You can also set the flight dynamically: ccw track UL504

Cricket

Uses ESPN's free cricket API — no API key required.

"cricket": { "team": "SL" }

• team — optional filter to show only matches for your team (e.g., SL, AUS, IND, RCB)
• leagues — optional array of ESPN league IDs to check (default: ["8048", "8676"] for IPL + International)

Common league IDs: 8048 (IPL), 8676 (International), 8044 (Big Bash), 8052 (CPL)

Pomodoro

"pomodoro": { "work_mins": 25, "break_mins": 5 }

Cache TTL

Any widget can have a custom cache TTL:

"weather": { "city": "Colombo", "cache_ttl": "30m" }

Default: 5m. Accepts Go duration strings (30s, 5m, 2h, 24h).

---

🎯 Managing Widgets

No need to edit JSON — use the interactive configurator or CLI commands:

# Interactive mode — visual layout editor
ccw configure

# See all available widgets and their status
ccw list

# Enable a widget (appends to last row)
ccw add weather

# Enable at a specific position (row 2, column 4)
ccw add weather -r 2 -c 4
ccw add weather --rc 2:4      # shorthand
ccw add weather --rc=2:4      # also works

# Disable a widget
ccw remove weather

# Edit config manually
ccw config edit

Example: 3-line setup

ccw add weather --rc 2:1
ccw add stocks --rc 3:1
ccw add hackernews --rc 3:2
ccw add moon --rc 3:3

---

🖥️ CLI Commands

Core

Command	Description
ccw	Pipeline mode — reads JSON from stdin, outputs status line. Called by Claude Code.
ccw init	Creates config, patches Claude Code settings
ccw doctor	Checks installation health
ccw preview	Renders sample status line with mock data
ccw version	Prints version

Widget Management

Command	Description
ccw list	Show all widgets with enabled/disabled status
ccw add <widget>	Enable a widget
ccw add <widget> --rc 2:4	Enable at row:col position
ccw remove <widget>	Disable a widget
ccw configure	Interactive widget layout configurator
ccw config edit	Open config in $EDITOR

Shortcuts

Command	Description
ccw pomo start	Start a 25-minute work session
ccw pomo stop	Stop the timer
ccw pomo skip	Skip to next phase (work/break)
ccw pomo status	Show timer status
ccw track UL504	Set flight to track
ccw track stop	Stop tracking
ccw hn	Top 5 Hacker News stories in terminal

---

🔌 Plugin System

Extend ccstatuswidgets with community plugins. Plugins are standalone executables that receive JSON on stdin and write JSON to stdout.

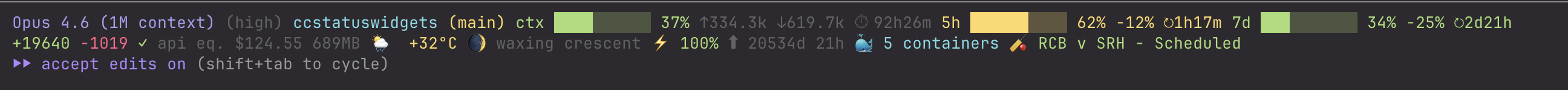

All built-in widgets + battery, uptime, docker plugins + IPL cricket scores

Official Plugins

Plugin	Description	Install
uptime	System uptime (⬆ 3d 12h)	ccw plugin add github.com/warunacds/ccw-plugin-uptime
battery	Battery level (🔋 78% / ⚡ 100%)	ccw plugin add github.com/warunacds/ccw-plugin-battery
docker	Running containers (🐳 4 containers)	ccw plugin add github.com/warunacds/ccw-plugin-docker
ip	Public IP (🌐 203.0.113.42)	ccw plugin add github.com/warunacds/ccw-plugin-ip

After installing, enable with ccw add <name>:

ccw plugin add github.com/warunacds/ccw-plugin-battery
ccw add battery                    # enable on the status line
ccw add battery --rc 2:5           # or at a specific position

Managing Plugins

ccw plugin add github.com/user/my-plugin    # install
ccw plugin list                              # list installed
ccw plugin remove my-plugin                  # uninstall
ccw plugin update my-plugin                  # update
ccw plugin update --all                      # update all

---

🛠️ Creating Plugins

📖 Full guide: See PLUGINS.md for the complete plugin development guide — protocol details, examples in 4 languages, testing, publishing, and troubleshooting.

A plugin is a Git repo with a plugin.json and an executable entry point.

Plugin Manifest

{
  "name": "my-widget",
  "version": "1.0.0",
  "description": "Shows something useful",
  "entry": "widget.sh",
  "cache_ttl": "5m",
  "interpreter": "sh"
}

Shell Plugin Example

#!/bin/sh
cat > /dev/null  # consume stdin
printf '{"text": "hello world", "color": "cyan"}'

Python Plugin Example

Install the Python SDK:

pip install ccstatuswidgets

from ccstatuswidgets import widget

@widget(name="my-widget")
def render(input_data, config):
    return {"text": "hello", "color": "green"}

Plugin Protocol

Plugins receive StatusLineInput JSON on stdin and must write a WidgetOutput JSON object to stdout:

{"text": "display text", "color": "cyan"}

Supported colors: red, green, yellow, blue, magenta, cyan, white, dim, gray

---

🗺️ Roadmap

Completed

• Phase 1 — Core engine, 10 built-in widgets, renderer, cache, config system
• Phase 2 — 13 more widgets (weather, stocks, flight, cricket, HN, moon, pomodoro, tokens, session-time, git-status, git-diff, now-playing, total-tokens), plugin system, Python SDK, CLI management
• Phase 3 — Per-widget colors (hex, 256, named), text formatting (bold/dim/italic/underline), custom separators, Powerline mode, interactive color picker in ccw configure

Up Next

• Windows support
• Homebrew tap (brew install ccstatuswidgets)
• Plugin registry (searchable catalog)
• Built-in themes (dracula, nord, solarized)
• More community plugins

---

🏗️ Development

Prerequisites

• Go 1.21+
• Git

Setup

git clone https://github.com/warunacds/ccstatuswidgets.git
cd ccstatuswidgets
go test ./...        # run tests
go build -o ccw ./cmd/ccw   # build

Project Structure

ccstatuswidgets/
├── cmd/ccw/                  # Entry point, CLI routing
├── internal/
│   ├── protocol/             # StatusLineInput, WidgetOutput types
│   ├── widget/               # Widget interface + registry
│   ├── widgets/              # 23 built-in widget implementations
│   ├── engine/               # Concurrent executor with cache fallback
│   ├── renderer/             # ANSI color renderer
│   ├── cache/                # File-based TTL cache
│   ├── config/               # JSON config loader + defaults
│   ├── httpclient/           # Shared HTTP client for API widgets
│   ├── plugin/               # External plugin runner
│   └── cli/                  # CLI commands (init, doctor, pomo, etc.)
├── python-sdk/               # Python SDK for plugin authors
├── install.sh                # Curl-based installer
├── .goreleaser.yml           # Cross-platform release config
└── .github/workflows/        # CI/CD — auto-release on tag

Running Tests

go test ./...              # all tests
go test ./... -race        # with race detector
go vet ./...               # lint

Releasing

Push a version tag — GitHub Actions builds binaries and creates the release automatically:

git tag v0.4.0
git push origin v0.4.0

---

📄 License

MIT © Waruna De Silva

---

🌟 Show Your Support

Give a ⭐ if this project helped you!

Report Bug · Request Feature
