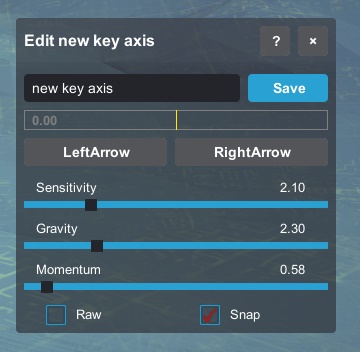

Key Axes

Key axis is used to create analog input from one or two keys.

1. To bind a button, point on the grey/red region and press the desired key, button or hat.
2. To unbind it, point on the bind and pres BACKSPACE.

---

• Sensitivity
  How fast the axis responds to the input.

• Gravity
  How fast the axis returns to the center. If set to zero, it stays at it's current position.

• Momentum
  How fast the axis value accelerates. The bigger the momentum, the slower it responds to the input force. At zero, it moves at a constant speed.

• Raw
  If toggled on, the axis simply returns +1 or -1 without any interpolations.

• Snap
  If toggled on, the axis value will jump over the center when you press the opposite button.

This axis can bind all controller and joystick buttons, including D-Pads. The bound buttons are specific to a device.

Tips:

• Set the gravity slider to zero to use the axis as a slider that does not automatically return to center.
• Set the gravity slider to negative to make the value fall towards the ends of the range, instead of center.
