PyChebyshev

A fast Python library for multi-dimensional Chebyshev tensor interpolation with analytical derivatives

PyChebyshev provides a fully optimized Python implementation of the Chebyshev tensor method, demonstrating that it achieves comparable speed and accuracy to the state-of-the-art MoCaX C++ library for European option pricing via Black-Scholes — with pure Python and NumPy only.

Performance Comparison

Based on standardized 5D Black-Scholes tests (test_5d_black_scholes() with S, K, T, σ, r):

Method	Price Error	Greek Error	Build Time	Query Time	Notes
Analytical	0.000%	0.000%	N/A	~10μs	Ground truth (blackscholes library)
Chebyshev Barycentric	0.000%	1.980%	~0.35s	~0.065ms	Full tensor, analytical derivatives
Chebyshev TT	0.014%	0.029%	~0.35s	~0.004ms	TT-Cross, ~7,400 evals (vs 161k full)
MoCaX Standard	0.000%	1.980%	~1.04s	~0.47ms	Proprietary C++, full tensor (161k evals)
MoCaX TT	0.712%	1.604%	~5.73s	~0.25ms	Proprietary C++, ALS (8k evals)
FDM	0.803%	2.234%	N/A	~0.5s/case	PDE solver, no pre-computation

Key Insights:

• Chebyshev Barycentric: spectral accuracy (0.000% price error) with analytical derivatives
• Chebyshev TT: only 7,400 evaluations (vs 161,051 full tensor), 50x more accurate than MoCaX TT
• Build time: 0.35s (PyChebyshev) vs 1.04--5.73s (MoCaX)
• Query time: 0.004ms batch (TT) / 0.065ms single (barycentric) vs 0.25--0.47ms (MoCaX)

---

Visual Comparison: Spectral Convergence

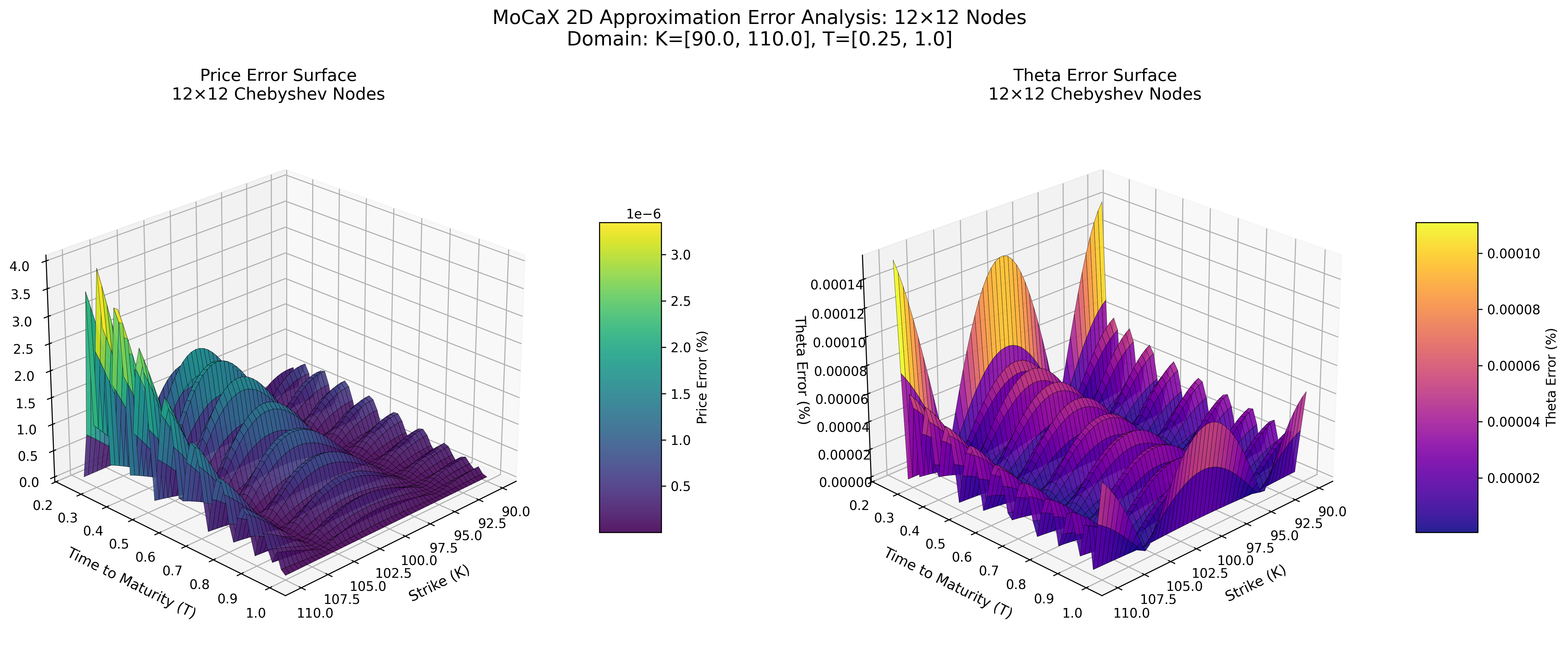

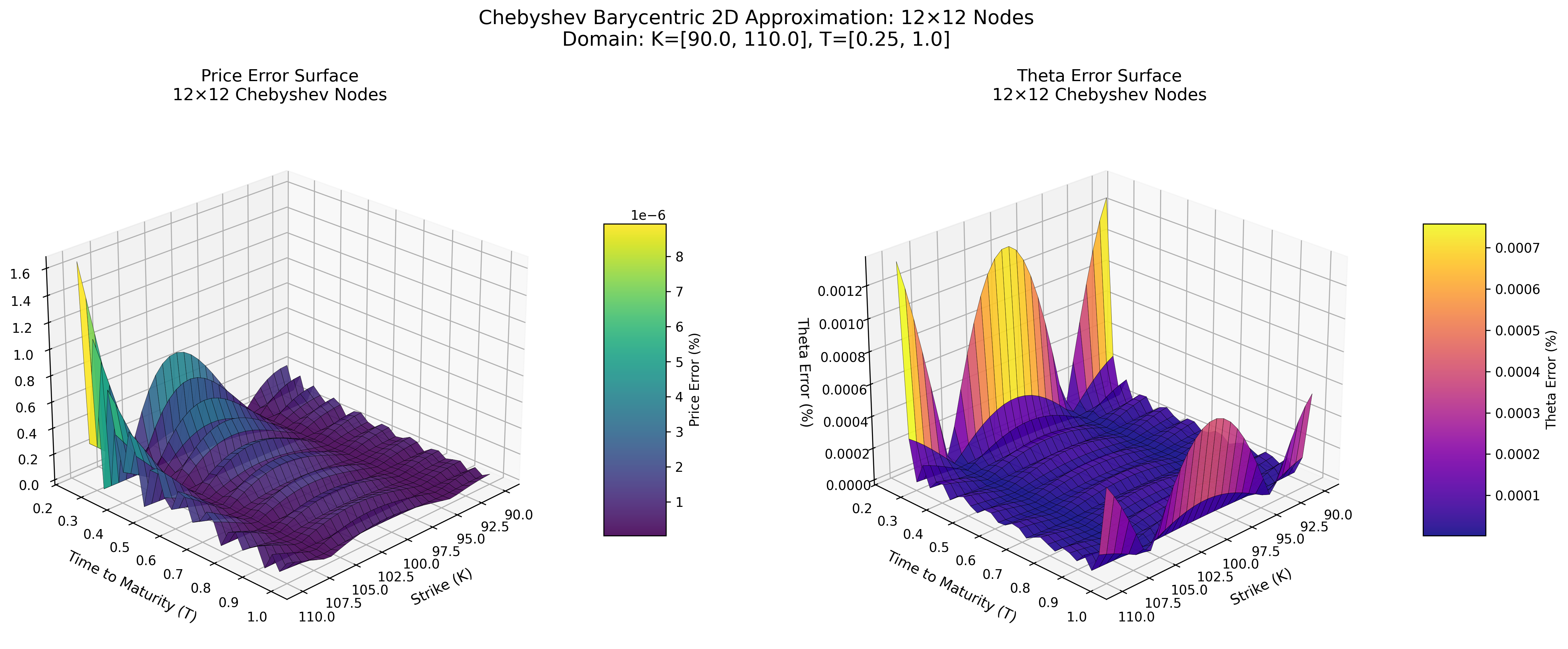

Error Surface at 12×12 Nodes

Chebyshev Barycentric (Python)

MoCaX Standard (C++)

Both methods achieve spectral accuracy (exponential error decay) with identical node configurations, demonstrating that the pure Python implementation successfully replicates the MoCaX algorithm's mathematical foundation.

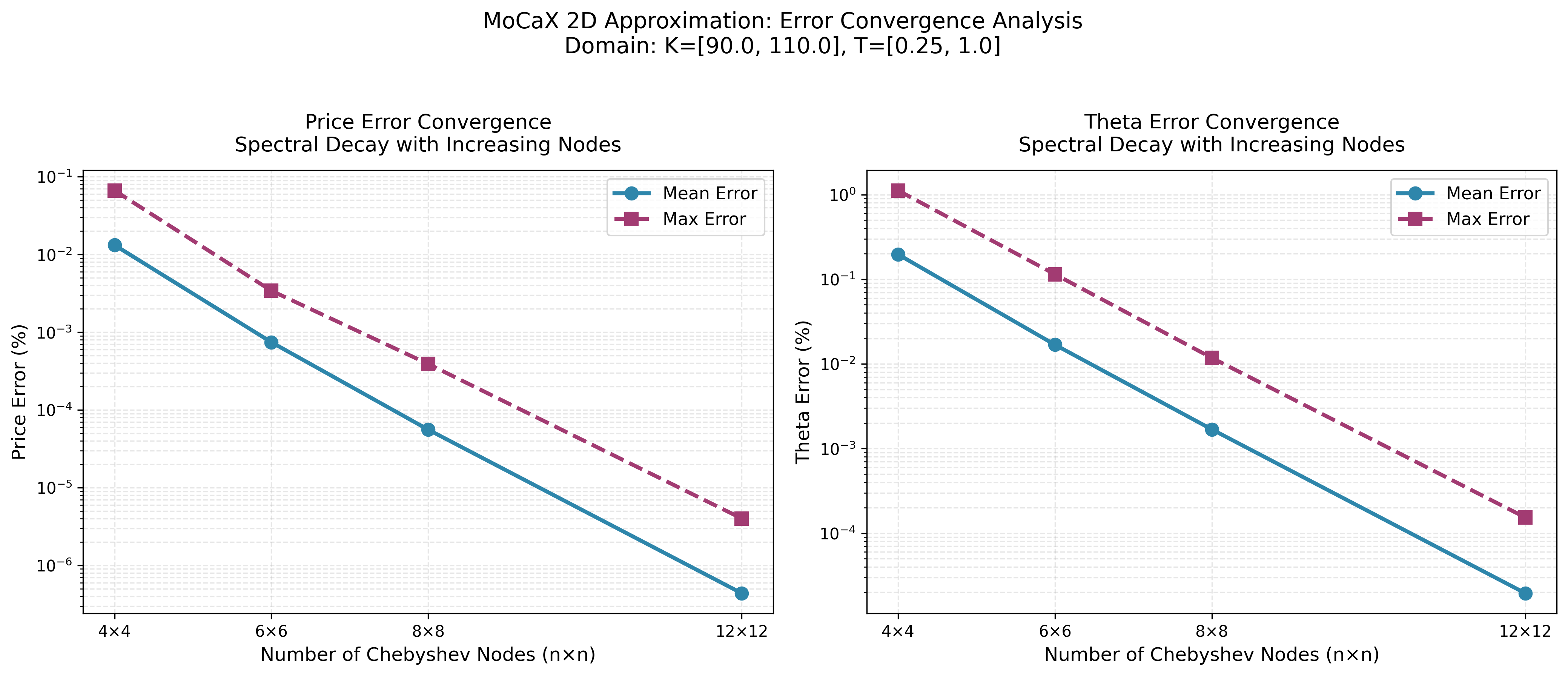

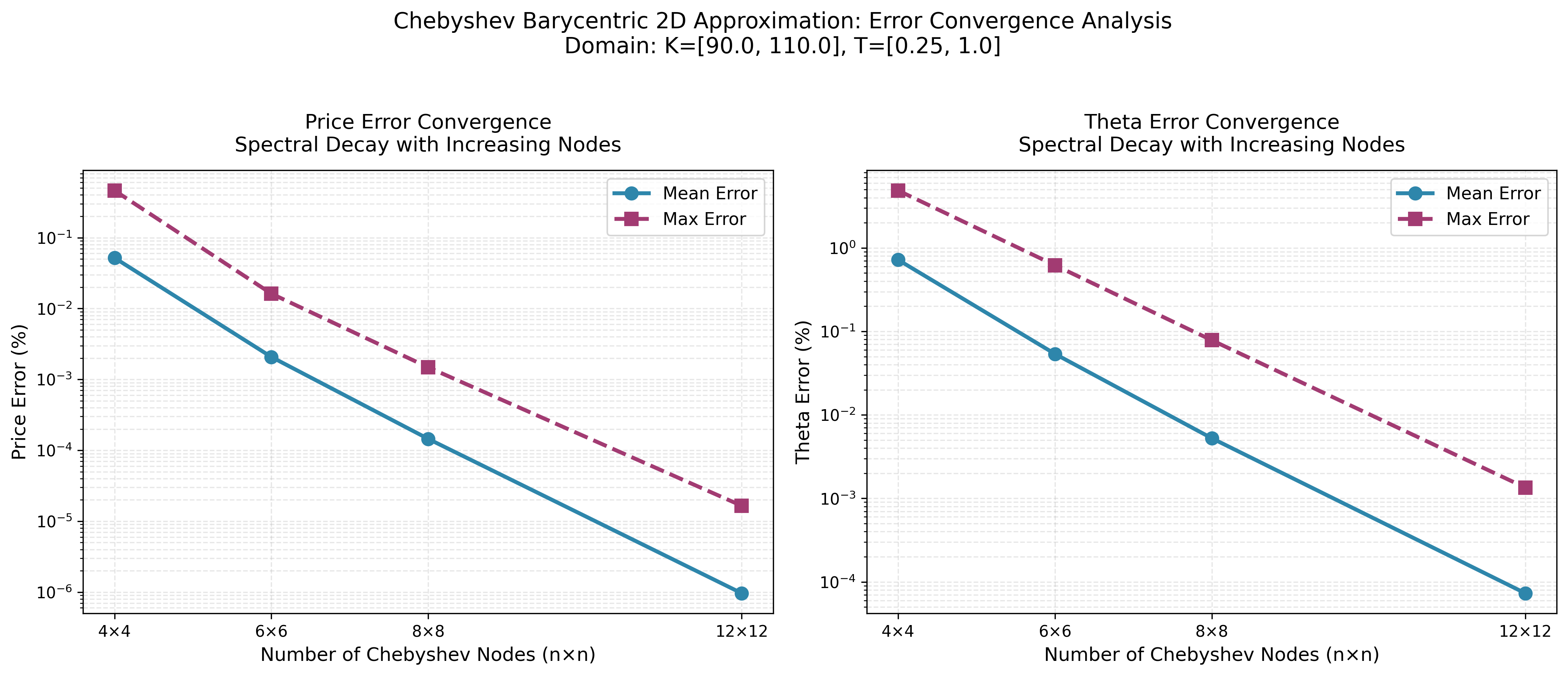

Convergence Analysis

Chebyshev Barycentric

MoCaX Standard

The convergence plots demonstrate exponential error decay as node count increases, confirming the spectral accuracy predicted by the Bernstein Ellipse Theorem. Errors drop rapidly from 4×4 to 12×12 nodes, reaching near-machine precision for this analytic function.

Features

• Full tensor interpolation via ChebyshevApproximation — spectral accuracy for up to ~5 dimensions
• Piecewise Chebyshev (splines) via ChebyshevSpline — knots at kinks/discontinuities restore spectral convergence for non-smooth functions
• Tensor Train decomposition via ChebyshevTT — TT-Cross builds from O(d·n·r²) evaluations for 5+ dimensions
• Sliding technique via ChebyshevSlider — additive decomposition for separable high-dimensional functions
• Arithmetic operators (+, -, *, /) — combine interpolants into portfolio-level proxies with no re-evaluation
• Extrusion & slicing — add or fix dimensions to combine interpolants across different risk-factor sets
• Integration, rootfinding & optimization — spectral calculus directly on interpolants, no re-evaluation needed
• Analytical derivatives via spectral differentiation matrices (no finite differences)
• Vectorized evaluation using BLAS matrix-vector products (~0.065ms/query)
• Pure Python — NumPy + SciPy only, no compiled extensions needed

Acknowledgments

Special thanks to MoCaX for their high-quality videos on YouTube explaining the mathematical foundations behind their library. These resources were invaluable for understanding and implementing the barycentric Chebyshev interpolation algorithm.

---

Getting Started

Installation

pip install pychebyshev

Quick Example

import math
from pychebyshev import ChebyshevApproximation

# Approximate any smooth function
def my_func(x, _):
    return math.sin(x[0]) * math.exp(-x[1])

cheb = ChebyshevApproximation(
    my_func,
    num_dimensions=2,
    domain=[[-1, 1], [0, 2]],
    n_nodes=[15, 15],
)
cheb.build()

# Evaluate function value
value = cheb.vectorized_eval([0.5, 1.0], [0, 0])

# Analytical first derivative w.r.t. x[0]
dfdx = cheb.vectorized_eval([0.5, 1.0], [1, 0])

# Price + all derivatives at once (shared weights, ~25% faster)
results = cheb.vectorized_eval_multi(
    [0.5, 1.0],
    [[0, 0], [1, 0], [0, 1], [2, 0]],
)

High-Dimensional Functions (Tensor Train)

For 5+ dimensional functions where full tensor grids are too expensive, use ChebyshevTT with TT-Cross:

from pychebyshev import ChebyshevTT

tt = ChebyshevTT(
    my_func, num_dimensions=5,
    domain=[[-1, 1]] * 5,
    n_nodes=[11] * 5,
    max_rank=10,
)
tt.build()
val = tt.eval([0.5] * 5)

# Batch evaluation (much faster per point)
import numpy as np
points = np.random.uniform(-1, 1, (1000, 5))
vals = tt.eval_batch(points)

Note: ChebyshevTT uses finite differences for derivatives (not analytical spectral differentiation). First-order Greeks are typically accurate to ~0.03%; see the docs for details.

Separable Functions (Sliding Technique)

For functions that decompose additively, use ChebyshevSlider:

from pychebyshev import ChebyshevSlider

slider = ChebyshevSlider(
    my_func, num_dimensions=10,
    domain=[[-1, 1]] * 10,
    n_nodes=[11] * 10,
    partition=[[0, 1], [2, 3], [4, 5], [6, 7], [8, 9]],
    pivot_point=[0.0] * 10,
)
slider.build()
val = slider.eval([0.5] * 10, [0] * 10)

See the documentation for full API reference and usage guides.

---

How It Works

PyChebyshev uses Chebyshev tensor interpolation to pre-compute fast approximations of smooth functions. The approach generalizes to all analytic functions, as proven by Gaß et al. (2018), which establishes (sub)exponential convergence rates for Chebyshev interpolation of parametric conditional expectations.

Four approaches for different scales

Class	Approach	Build Cost	Eval Cost	Derivatives
ChebyshevApproximation	Full tensor + barycentric weights	$n^d$ evals	$O(d \cdot n)$ via BLAS GEMV	Analytical (spectral)
ChebyshevSpline	Piecewise Chebyshev at knots	$\text{pieces} \times n^d$ evals	$O(d \cdot n)$ via BLAS GEMV	Analytical (per piece)
ChebyshevTT	TT-Cross + maxvol pivoting	$O(d \cdot n \cdot r^2)$ evals	$O(d \cdot n \cdot r^2)$ via einsum	Finite differences
ChebyshevSlider	Additive decomposition into slides	Sum of slide grids	Sum of per-slide evals	Analytical (per-slide)

Key ideas

Barycentric interpolation (ChebyshevApproximation): The barycentric formula separates node positions from function values — weights $w_i = 1/\prod_{j \neq i}(x_i - x_j)$ depend only on nodes and can be fully pre-computed. This enables $O(N)$ evaluation for all dimensions (vs. $O(N \log N)$ for polynomial coefficient approaches) and analytical derivatives via spectral differentiation matrices — no finite differences needed.

Tensor Train decomposition (ChebyshevTT): The full $n^d$ tensor is never formed. Instead, TT-Cross builds a chain of small 3D cores from strategically selected function evaluations (maxvol pivot selection), reducing 161,051 evaluations to ~7,400 for 5D Black-Scholes.

BLAS vectorization: All evaluation paths route tensor contractions through optimized BLAS routines (numpy.dot, numpy.einsum), achieving ~150x speedup over scalar loops.

For the full mathematical foundation — Chebyshev nodes, Bernstein ellipse theorem, barycentric formula, spectral differentiation matrices, and TT-Cross algorithm — see the documentation.
